Product Details:
Payment & Shipping Terms:
|
Product Name: | 1500cc Four Wheel Utility Vehicle | Min Ground Clearance: | 200mm |
---|---|---|---|
Transmission Mode: | Chain Drive | Work Capacity Of The Engine Cylinder: | 149.6ml |
Max Torque And Speed: | 9.8N·m/6000r/min | Ignition: | CDi |
High Light: | recreational utility vehicle,atv utility vehicles |

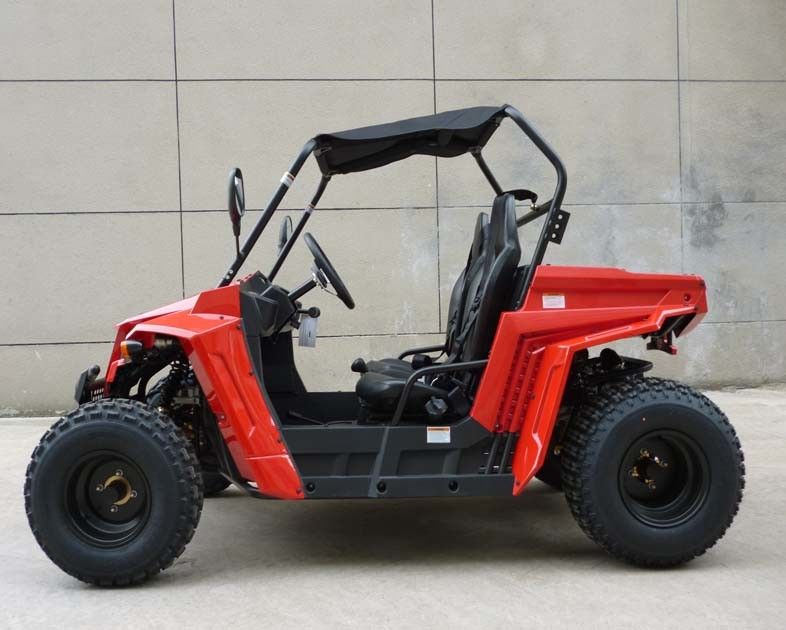

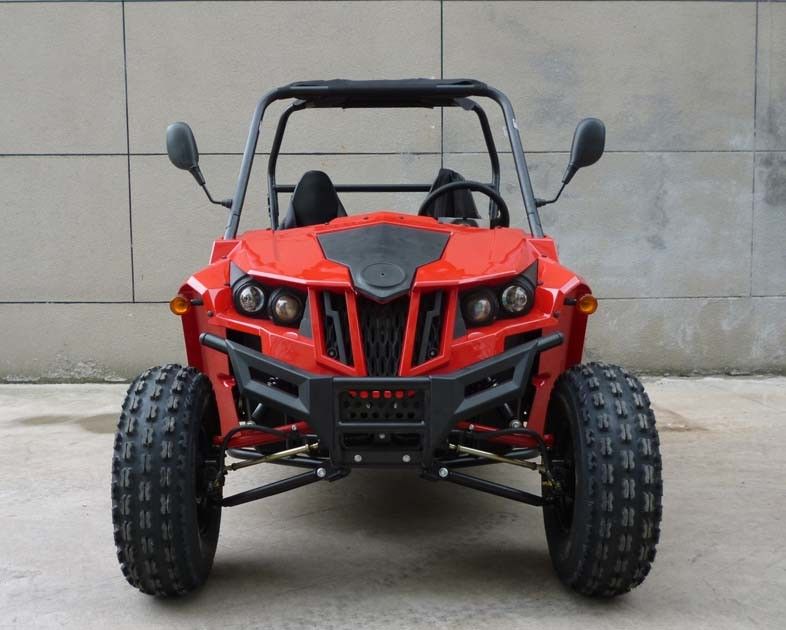

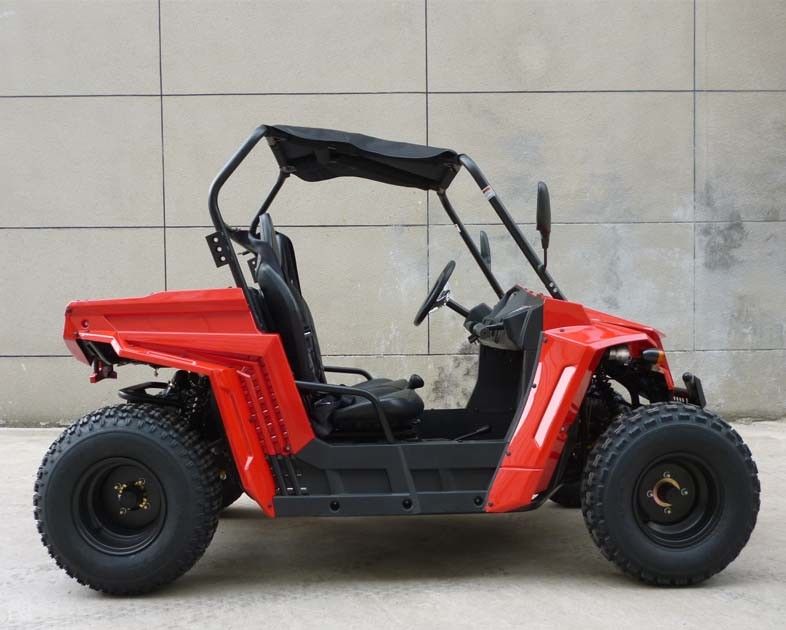

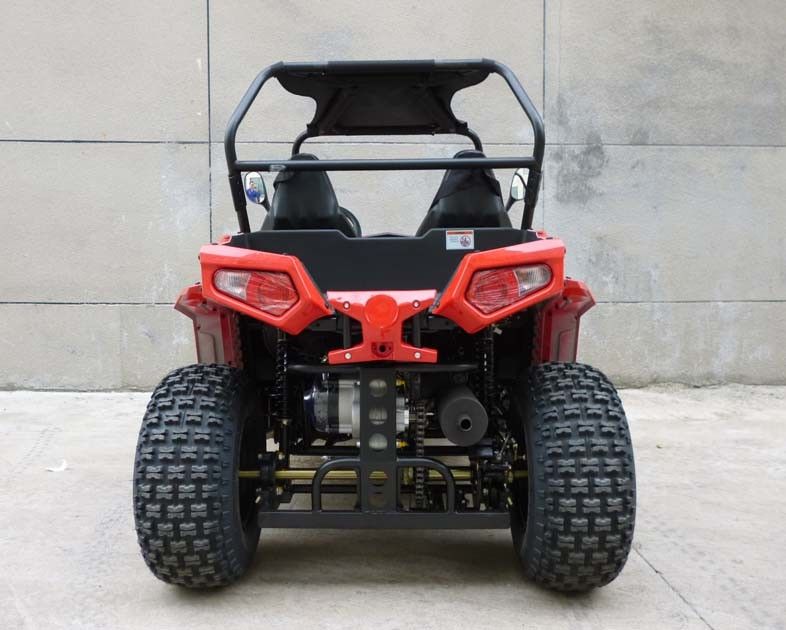

150cc gas utility vehicles four color and designed for kids or adults
Length×Width×Height(with no ceiling) | 2230x1220x1420mm |
wheelbase | 1700mm |
Front & Rear Tread | Front:970mm Rear:960mm |
Min Ground clearance | 200mm |
Min turning circle radius | 4m |
Max turning angle | 32° |
Gross vehicle weight | 250kg(with empty tank) |
Rated load weight | 200kg |
Top speed | 60km/h |
Brakes | Hydraulic disc brakes |
Brake control mode(Front/Rear) | footbrake,Hydraulic disc system |
Rim type(front /rear) | Spoke |
Tyres Pattern(Front/Back) | 19x7-8 20x10-9 |
Transmission mode | Chain drive |
Type | JL1P57QMJ-3 |
Type and Description | Four stroke,forced air cooling,horizontal |
bore×stroke | 57.4×57.8mm |
Work capacity of the engine cylinder | 149.6ml |
Compression Ratio | 9.5 |
Max Power and speed | 6.8Kw/7500r/min |
Max Torque and speed | 9.8N·m/6000r/min |
Lowest continuous speed with load | 1700±100r/min |
Cluth type | Automatic centrifugal dry type shoe clutch |
Starting | Electric |
Ignition | CDI |
Applications:
For adult use only/ Forest road/ Riverbed/Stream,
Mountain Road/ On the Beach/ Farm and Pleasure Ground
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge.
This vehicle will be sent to you assembled by sea and you can ride as soon as getting it.
The terms of payment is wire transfer,western union or moneygram.
The delivery time is about 20 days.
Contact Person: Mr. Jackycai
Tel: +8613761175834
