200CC EFI Utv Single Cylinder Four Stroke, Balance Shaft With Short Hard Roof (Dump Bed)

200CC EFI Utv Single Cylinder Four Stroke, Balance Shaft With Short Hard Roof (Dump Bed)

Balance Shaft Utv

200CC EFI Utv

Single Cylinder Four Stroke Utv

Place of Origin:

China

Brand Name:

RONGYAO

Certification:

EC,EEC,DOT,EPA

Model Number:

sports utility vehicles200cc16

Contact Us
Request A Quote
Product Details
Product Name:
200cc Four Wheel Utility Vehicle
Transmission:
Shaft Drive, H/L Speed Transmission
Suspension,front/rear:
Front MacPherson
Brakes,front/rear:
Disk/Disk
Wheelbase:
1620mm
Compression Ratio:
9.6:1
High Light:

Balance Shaft Utv

,

200CC EFI Utv

,

Single Cylinder Four Stroke Utv

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Metal Frame with Carton
Delivery Time
Within 20 Days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1000 pcs/month
Product Description

200CC EFI Utv Single Cylinder Four Stroke, Balance Shaft With Short Hard Roof (Dump Bed)



Model:

Gas utility vehicle200cc16

Product Description:

Basic configurationEFI, 2WD
Short hard roof (Dump bed) / Extension hard roof (Golf)
Flat Windshield
LED front lamp, turn signal & daytime running light
Aluminium wheel
Mesh door
12V 9AH battery
Two side rear view mirror
Arm rest

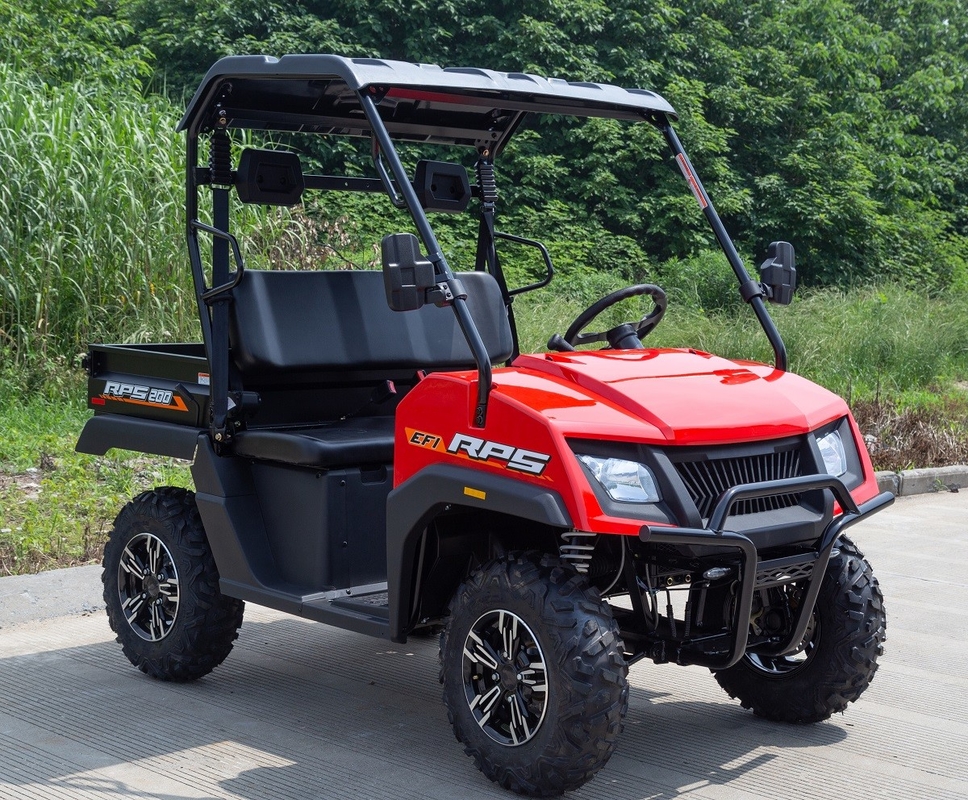

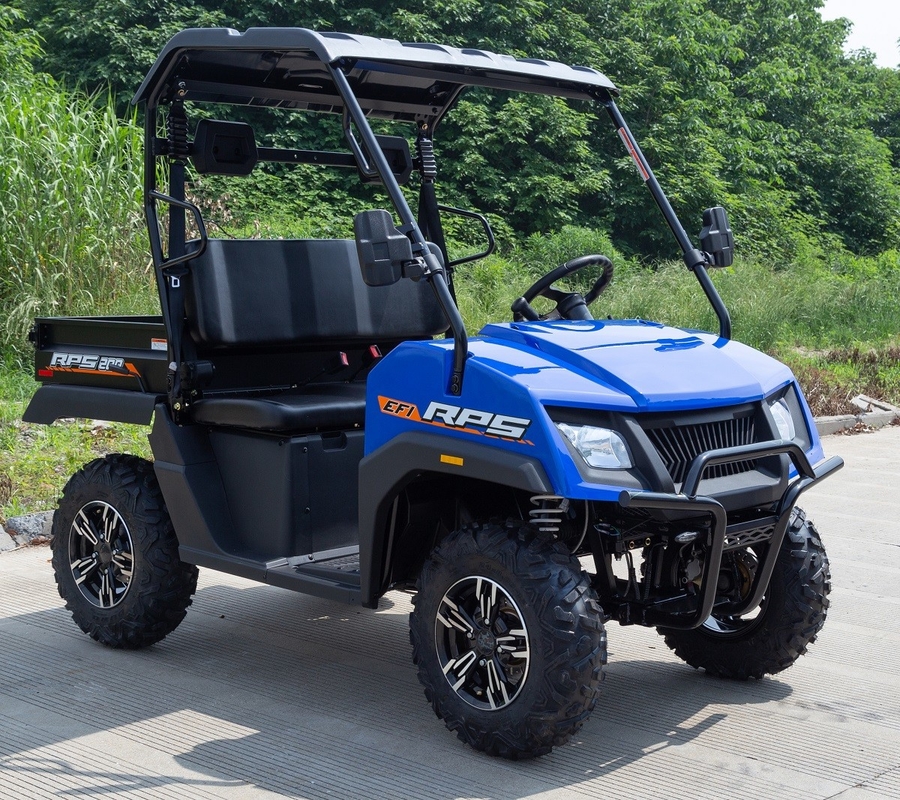

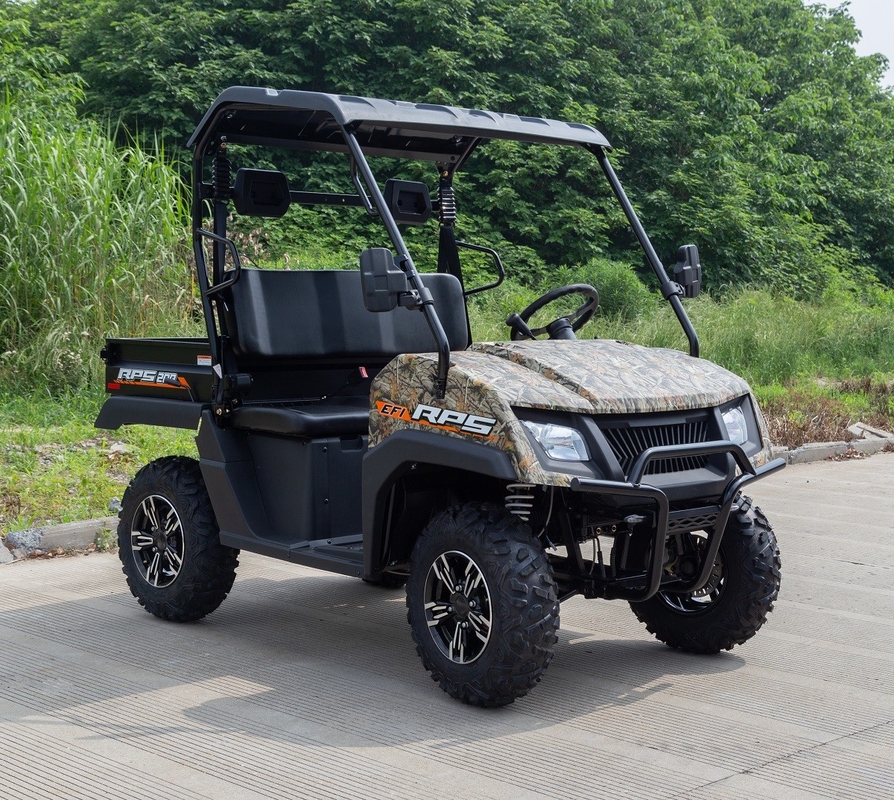

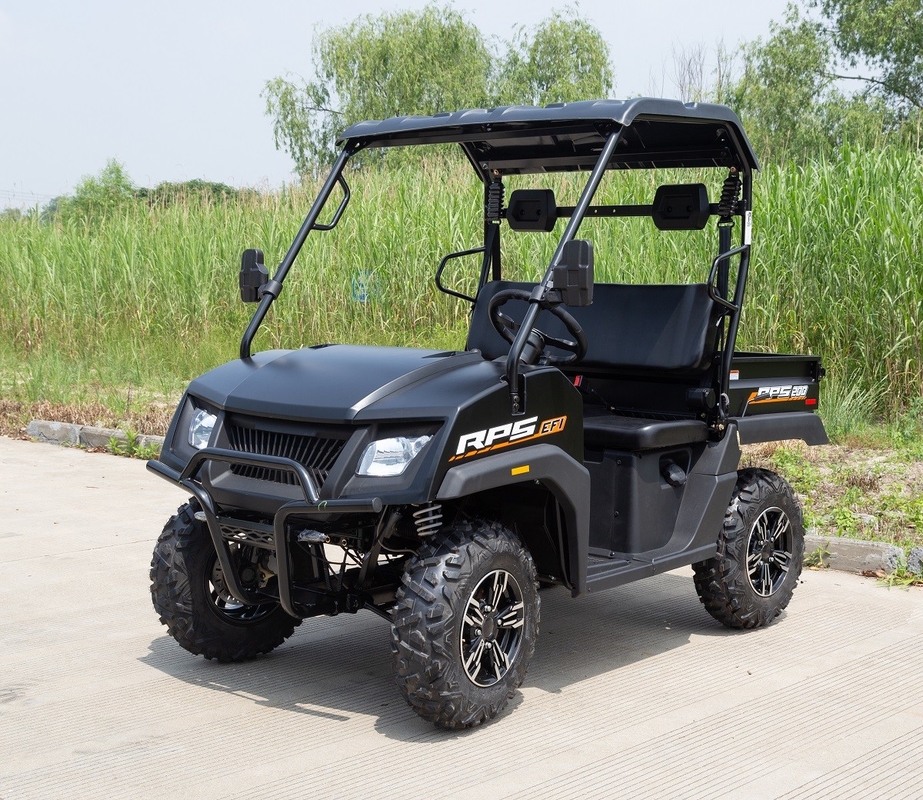

ColorsDump bed: Red, Blue, Black, Camouflage/Golf version: Red, Black, Blue
Vehicle SpecificationLength×Width×Height : mm 2362X1397X1870(dump bed) 2880X1397X1870(dump bed)
Wheelbase : mm1620
Minimum ground clearance : mm260
Weight with full equipments : KG390(dump bed)/405(golf version)
Weight with full load : KG320(dump bed)/340(golf version)
Maximum Speed : km/h45/40
Brake Type (front/rear) : Disk/Disk
Drive ModeFront / Rear Shaft Drive
Control ModeSteering Wheel
Suspension front/rearFront MacPherson, Rear Dual A-ARM
Transmission ModeShaft Drive, H/L Speed Transmission
Dump Bed Size711x1210x337 dump 35°
Engine SpecificationEngine Type : Single Cylinder, Four Stroke, Forced Air and Oil Cooling, Balance shaft
Ignition CoilECU
Cylinder Volume(ml): 177.3
Compression Ratio9.6:1
Max Power and Crankshaft Speed kW/(RPM)9.0kW/7000~7500r/min
Max Torque and Crankshaft Speed N.m/(RPM)13.2N.m/6000r/min
Fuel #87 Unleaded Gasoline
Lubrication Pressure and Splash
Clutch Automatic Centrifugal(CVT)
Start-Up ModeElectric Start





Applications:



For adult use only, Forest road, Riverbed, Stream,

Mountain Road, On the Beach, Farm and Pleasure Ground










Terms of transaction:


  1. Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it.
  2. The terms of payment is wire transfer,western union or moneygram.
  3. The delivery time is about 20 days.




We have EPT and DOT certificate and you can buy this UTV in our company. We will help you to do customs clearance when it arrives and you will get it safely.



FAQ
1. For the sample: we can delivery the sample at the first order. but need add some sample fee to balance the export cost in Chinese custom.
2. The UTV COLOR can choose by yourself on the ordinary colors,Also can do the custom-made
3. Shipping:General by the sea shipping, port to port. can't do the door to door.
4. The Package: The bike have been 90% assembled, with the accessory kit can be do rapid
assembly. Don't need professional tools and mechanic.
5. Delivery: we have no stock, all of these UTV is production by the order, Just for one order, the production time general will take about 15-20days.
6. If for the EEC Model, can delivery the COC certificate for you registration, Also can delivery the Certificate Of Origin(CO).
7. Warranty: Engine and the Frame is one year, the other if not Artificial damage is 5 months. The spare parts also can order from us.
