Product Details:
Payment & Shipping Terms:
|
| Product Name: | 125cc Youth Racing Atv | Cooling: | Oil Cooled |
|---|---|---|---|
| Max Torque: | 8.6n.m/5500rpm | Starting System: | Electric/kick |
| Battery: | 12V5Ah | Engine Oil: | SAE15W/40SF |
| High Light: | youth electric atv,youth four wheelers |
||

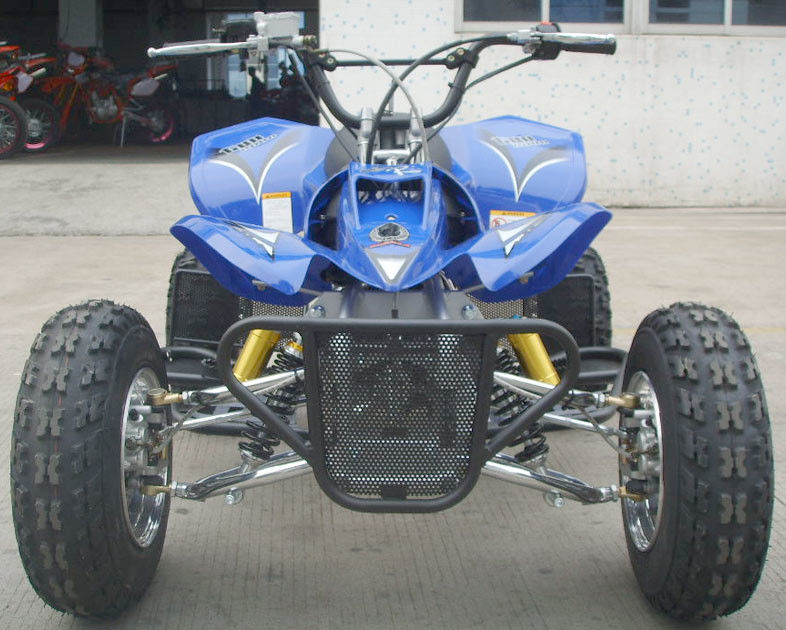

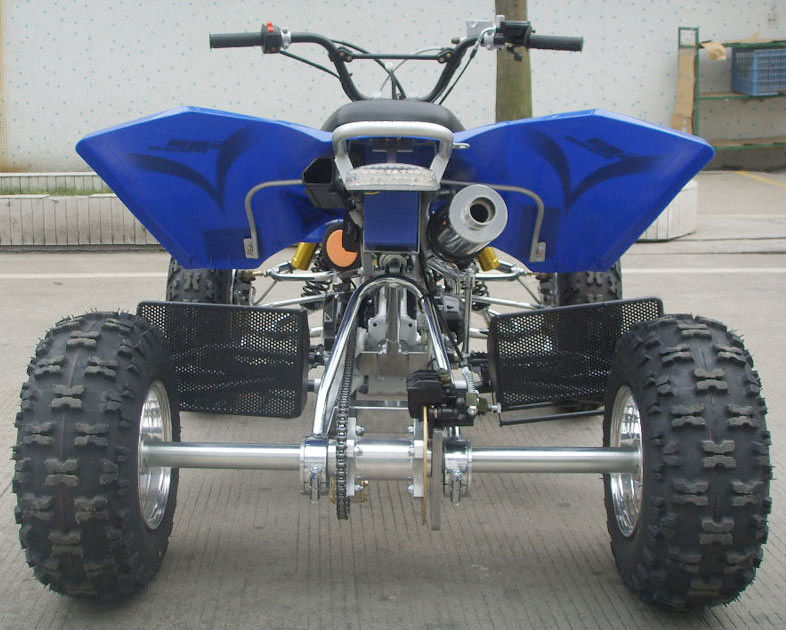

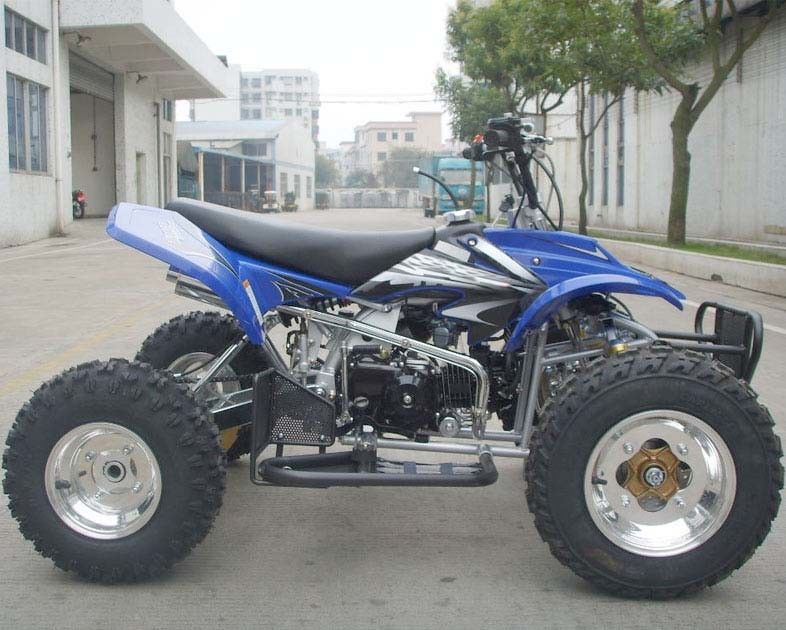

125cc FULL SIZE RACING STYLE 6.5KW 4 stroke oil-cooled manual clutch of youth racing atv
Model:
Youth racing atv125-4
Product Description:
| Engine type : | Chain |
| Engine brand : | * |
| Displacement : | 125cc |
| Cooling : | Oil cooled |
| Max horsepowe : | 7.9hp/7000rpm |
| Max torque : | 8.6n.m/5500rpm |
| Bore*stroke : | 2.06*2.24inches |
| Max speed : | 40.4mile/h |
| Climbing ability : | 17degree |
| Ignition : | C.D.I |
| Starting system : | Electric/kick |
| Battery : | 12V5Ah |
| Carburetor brand : | PZ25 |
| Engine oil : | SAE15W/40SF |
| Gear oil : | * |
| CHASSIS ETC : | |
| Clutch : | Manual |
| Transmission : | 4 speed |
| Driveline : | Chain-drive |
| Driving wheel : | Rear wheel drive |
| Suspension,front/rear : | Double a-arm/single a-arm |
| Brakes,front/rear : | Disc/disc |
| Brake operation : | Hand+foot |
| Tires,front/rear : | 19*6-10/18*6.50-8 |
| Fuel capacity/type : | 0.8gal |
| Weight,G.W./N.W : | 313.1/264.6lbs |
| Max load : | 264.6lbs |
| DIMENSIONS : | |
| Wheelbase : | 41.1inches |
| OA L*W*H : | 59.1*41.3*36.2inches |
| Height to seat : | 25.6inches |
| Min ground clearance : | 3.9inches |
| Carton size : | 52.8*38.6*28inches |
Applications:
For adult use only, Forest road, Riverbed, Stream,
Mountain Road, On the Beach, Farm and Pleasure Ground
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or moneygram. The delivery time is about 20 days.
FAQ:
1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
A: No. All bikes are to be produced according to your order including samples.
3. Q: What’s the delivery time?
A: It usually takes about 20 working days to produce an order from MOQ to 40HQ container. But the exact delivery time might be different for different orders or at different time.
4. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
