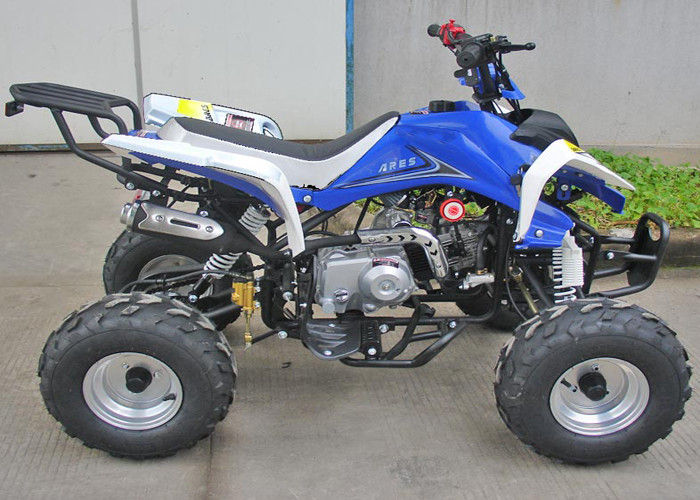

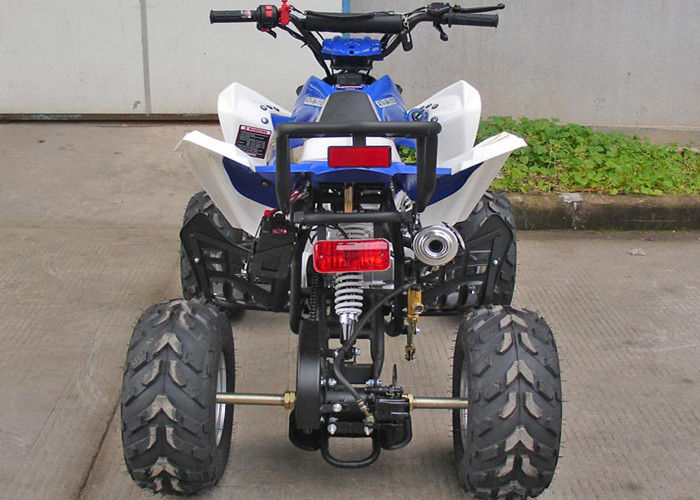

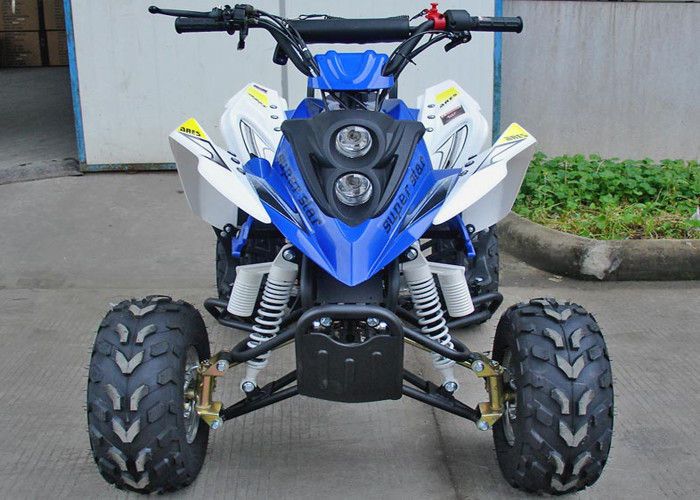

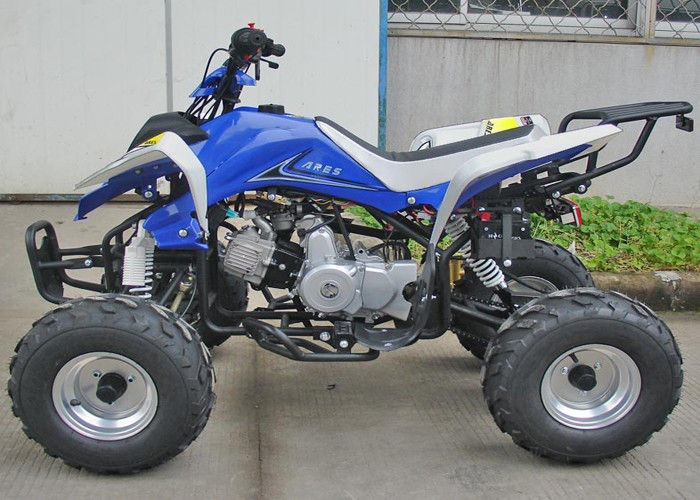

50CC 70CC 90CC110CC Youth Racing ATV 7" Tire Front Drum Brake Rear Disc Brake Foot Brake

50CC 70CC 90CC110CC Youth Racing ATV 7" Tire Front Drum Brake Rear Disc Brake Foot Brake

50CC 70CC 90CC110CC Youth Racing ATV 7" Tire Front Drum Brake Rear Disc Brake Foot Brake
50CC 70CC 90CC110CC Youth Racing ATV 7" Tire Front Drum Brake Rear Disc Brake Foot Brake 50CC 70CC 90CC110CC Youth Racing ATV 7" Tire Front Drum Brake Rear Disc Brake Foot Brake 50CC 70CC 90CC110CC Youth Racing ATV 7" Tire Front Drum Brake Rear Disc Brake Foot Brake 50CC 70CC 90CC110CC Youth Racing ATV 7" Tire Front Drum Brake Rear Disc Brake Foot Brake

Large Image :  50CC 70CC 90CC110CC Youth Racing ATV 7" Tire Front Drum Brake Rear Disc Brake Foot Brake Get Best Price

Product Details:
Place of Origin: China
Brand Name: RONGYAO
Certification: EC,EEC,DOT,EPA
Model Number: youth racing atv50-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Metal Frame with Carton
Delivery Time: Within 20 Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/month
Detailed Product Description
Product Name: 50cc Youth Racing Atv Max Horsepower: 5.5/8500(Kw(r/min))
Starting System: Electric Start Transmission: Automatic
Driveline: Chain Drive Wheelbase: 940mm
High Light:

racing 4 wheelers

,

youth four wheelers

50CC 70CC 90CC110CC 7"Tire Automatic clutch Front drum brake Rear disc brake Foot brake







Model:

youth racing atv50-2

Product Description:

(1) Engine type:Air cooled, 4-stroke, single cylinder, chain drive
(2) Engine brand:TIANZHONG, YINGNAITE
(3) Displacement:50/90/110CC
(4) Cooling:Air cooled
(5) Max horsepower:5.5/8500(Kw(r/min))
(6) Max torque:6.5/5500-6000 N.m(r/min)
(7) Bore*stroke:52.4
(8) Max speed:45km/h
(9) Climbing ability:17°
(10) Ignition:CDI
(11) Starting system:Electric start
(12) Battery:5L-BS
(13) Carburetor brand:PZ19 JINKE
(14) Engine oil:15W/40-SE summer 10W/30-SF winter
(15) Gear oil:15W/40-SE summer 10W/30-SF winter
(16) Clutch:Automatic
(17) Transmission:Automatic
(18) Driveline:Chain drive
(19) Driving wheel:2x4
(20) Suspension,front/rear:Front double suspension, rear single suspension
(21) Brakes,front/rear:Front drum brake, rear disc brake
(22) Brake operation:Front hand brake, rear foot brake or hand brake
(23) Tires,front/rear:Fron: 16×8-7 rear: 16X8-7
(24) Fuel capacity/type:3.4
(25)Weight,G.W./N.W.:92/78kg
(26)Max load:40kg
(27)Wheelbase:940mm
(28)OA L*W*H:1530×900×1000mm
(29)Height to seat:730 mm
(30)Min ground clearance:70 mm
(31)Carton size:1325×765×610 mm
(32)Shipping info:108pcs




Applications:



For adult use only, Forest road, Riverbed, Stream,

Mountain Road, On the Beach, Farm and Pleasure Ground










Terms of transaction:

Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or moneygram. The delivery time is about 20 days.



FAQ:


1. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container.
2. Q: How does your factory do regarding quality control?
A: Quality is priority. our staff always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
3. Q:What's your warranty terms?
A: for engine and frame is one year,and other parts are 3 months.
4. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Our company is the member of ecer.com . If you check with ecer, you will see that we have never got any complaint from our customers.
