Product Details:
Payment & Shipping Terms:
|
| Product Name: | 1000cc Four Wheel Utility Vehicle | Engine Type: | 1000cc |
|---|---|---|---|
| Starter: | Electric Start | Engine Type: | 3-Cylinder, Water & Oil Cooled, 4-stroke, Swirl Combustor |
| Fuel Consumption: | On Road: 6 L / 100km Off Road: 10 L/100km | Brakes Front: | Four Wheel Independent Hydraulic Brake System Front And Rear Hydraulic Ventilated Disk Brakes With Vacume Assisted Power Booster Stainless Steel Braided Brake Lines |
| High Light: | 1048cc UTV Utility Vehicles,3 Cylinder UTV Utility Vehicles,1.0L Diesel UTV Utility Vehicles |
||

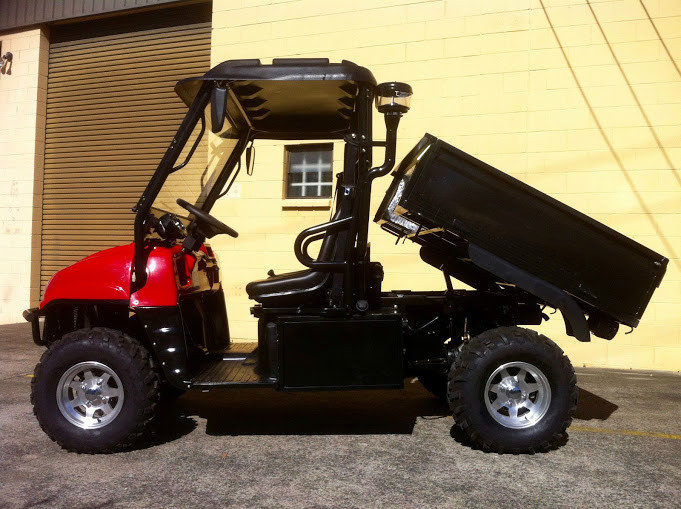

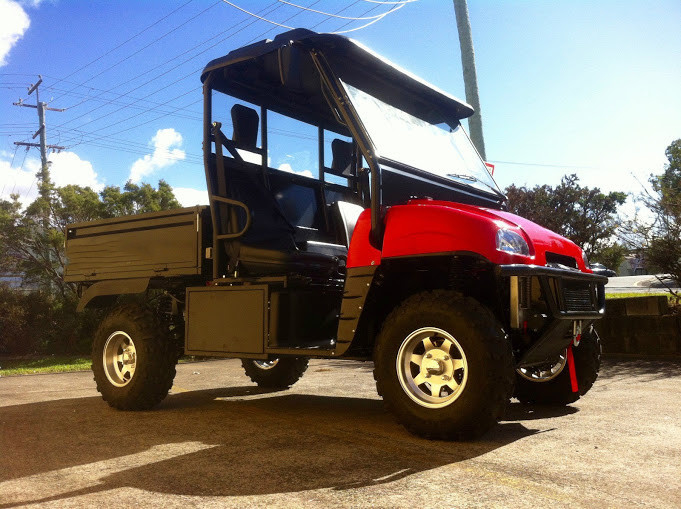

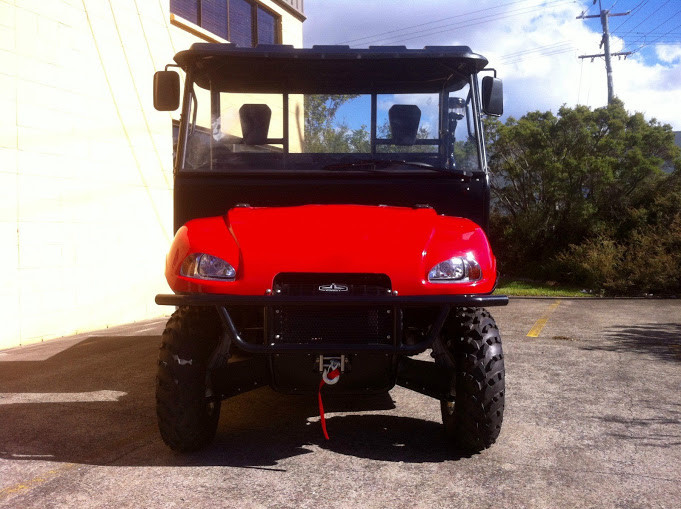

Powerful 3 cylinder 1048cc water and oil cooled genuine Japanese Daihatsu diesel engine UTV
| Engine Make | Daihatsu 1.0L Diesel |
|---|---|
| Engine Type | 3-Cylinder, water & oil cooled, 4-stroke, swirl combustor |
| Displacement | 1.048L |
| Horsepower | Rated Power: 17.5kw/3600 r/min; 23.6 hp. |
| Fuel Capacity Diesel | 29L |
| Transmission | CVT continuous variable transmission Transmission l+h+n+r automatic v-belt CVT with reverse Front and rear shaft drive with grease points Selectable 2WD / 4WD Electronic controlled front and rear diff locks l + h 2wd & 4wd Push button 2 way locking system with lockable front diff. |
| Top Speed | In high gear range: 50 km/h In low gear range: 28 km/h |
| Wheels, Drive System | 2WD/4WD switch, Shaft drive, Electric controlled diff locks. |
| Engine starting | Electric start |
| Gear Selection | CVT-R N L H |
| Front / Rear Brake | Four wheel independent hydraulic brake system Front and rear hydraulic ventilated disk brakes with vacume assisted power booster Stainless steel braided brake lines |
| Braking Distance | Less than 7M at 30km/h |
| Chassis | Thick solid steel C channel very well welded and balanced frame with multiple roll over protection bars |
| Steering | Rack and Pinion |
| Suspension | Front: Independent A-Arms with Mac-Pherson struts Rear: Independent dual A- arms with solid heavy duty coil over suspension |
| Dimensions | L x W x H = 3160mm×1550mm ×1950mm |
| Front Tread Centers | 1230mm |
| Rear Tread Centers | 1330mm |
| Wheelbase | 2095mm |
| Ground Clearance | 300mm |
| Turning Radius | 5 M |
| Towing Capacity | 800 kg |
| Cargo Bed Load Capacity | 400 kg |
| Fuel Consumption | On Road: 6 L / 100km Off Road: 10 L/100km |
| Weight ( unloaded ) | 765kg (1686 lbs) |
| Steel Tray Dimensions | Width x Length x Height: 1435mm x 1250mm x 340mm |
| Steel Tray Load Capacity | 400 kg |
| Sound Level, at Operator’s Ear db.( A) | 82 db |
| Wheels and Tyres | Front: Four stud alloy wheels, All Terrain tyres 25×8-12 : 6 ply Rear: Four stud alloy wheels, All Terrain tyres 25×10-12 : 6 ply |
| Person | Dual seating (2 Persons) |
Applications:
For adult use only/ Forest road/ Riverbed/Stream,
Mountain Road/ On the Beach/ Farm and Pleasure Ground
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge.
This vehicle will be sent to you assembled by sea and you can ride as soon as getting it.
The terms of payment is wire transfer,western union or moneygram.
The delivery time is about 20 days.
