Place of Origin:
China
Brand Name:
RONGYAO
Certification:
EC,EEC,DOT,EPA
Model Number:

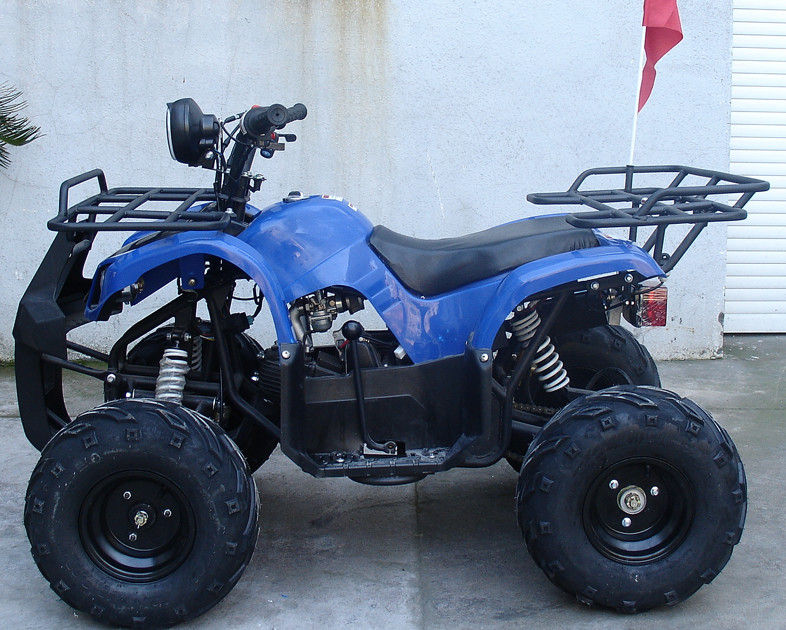

youth racing atv110-18
110,Semi-Automatic with reverse,Front drum brake,Rear disc brake,Foot brake
Model:
youth racing atv110-20
Product Description:
| Engine type | Four Stroke ,single cylinder, |
| Engine brand | Tianzong |
| Displacement | 110 mL |
| Cooling | Air cooled |
| Max horsepower | 5.2kW/8000(r/min)； |
| Max torque | 7.0N.m/5000(r/min) |
| Bore*stroke | 52.4×49.5 mm |
| Max speed | 55km/h |
| Climbing ability | ≥11° |
| Ignition | C.D.I |
| Starting system | Electric start |
| Battery | 12V 4AH |
| Carburetor brand | Pz19 |
| Engine oil | 15W/40-SE |
| Gear oil | * |
| CHASSIS ETC | |
| Clutch | automatic |
| Transmission | 1-forward,1-neutral,1-reverse |
| Driveline | Chain drive |
| Driving wheel | * |
| Suspension,front/rear | FR:DOUBLE / RR:SINGLE |
| Brakes,front/rear | FR:DRUM RR:DISC |
| Brake operation | HAND+foot |
| Tires,front/rear | F 19×7.0-8 / T 18×9.5-8 |
| Fuel capacity/type | 2.3L |
| Weight,G.W./N.W. | * |
| Max load | 90kg |
| DIMENSIONS | |
| Wheelbase | 890 mm |
| OA L*W*H | 1340×850×950 mm |
| Height to seat | 680 |
| Min ground clearance | 100mm |
| Carton size | 1310×760×650mm |
| Shipping info | 107PCS/40HQ |
Applications:
1. adult use only
2. Forest road
3. Riverbed, Stream,
4 Mountain Road / Beach
5. Farm / Pleasure Ground
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or moneygram. The delivery time is about 20 days.
Our Service:
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
