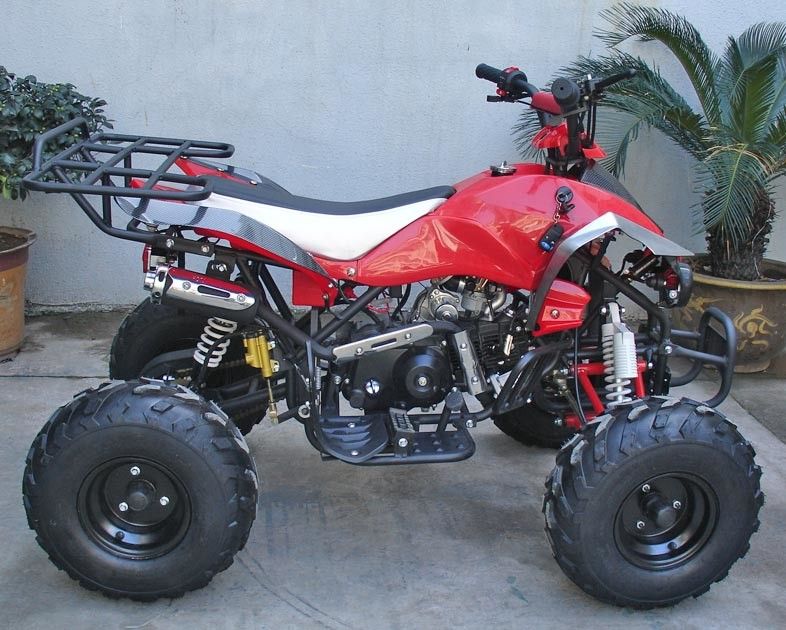

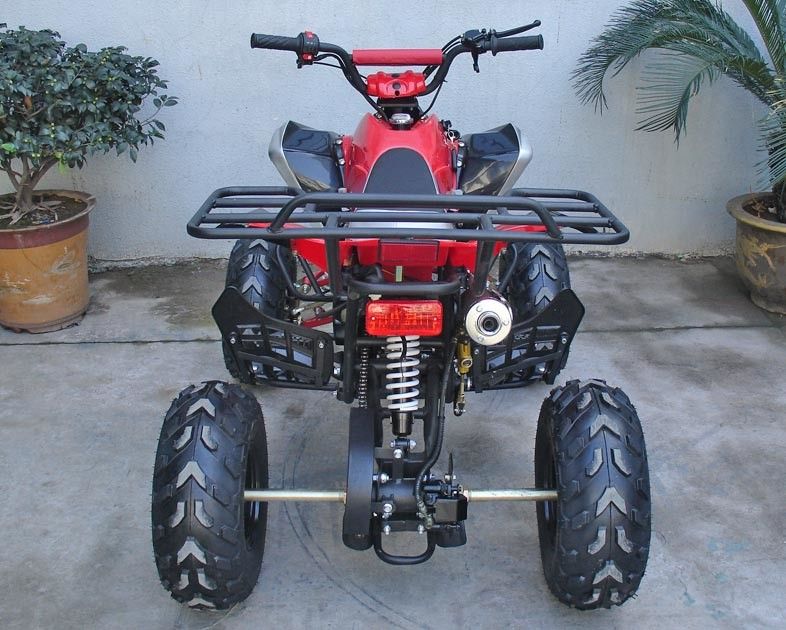

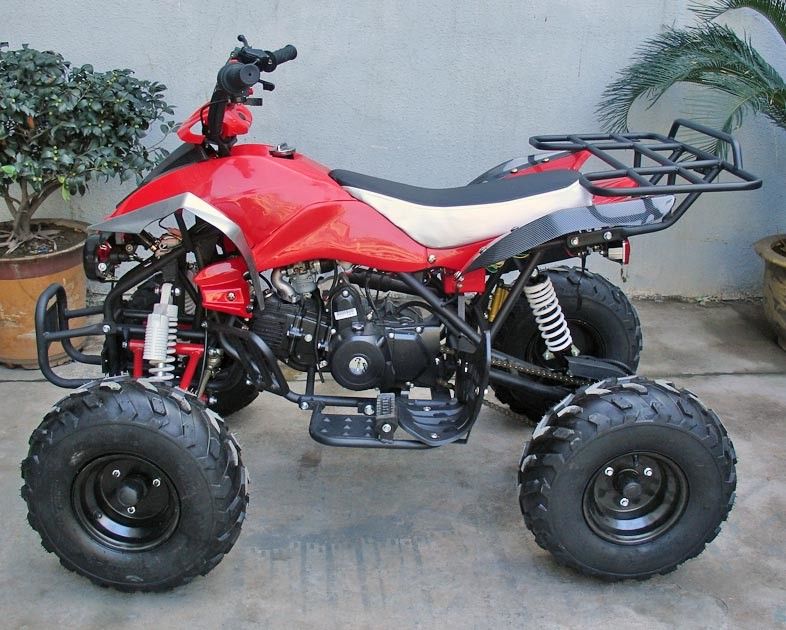

Automatic Clutch Youth Racing ATV 110cc With Front Drum Brake 60km/H

Automatic Clutch Youth Racing ATV 110cc With Front Drum Brake 60km/H

racing 4 wheelers

youth electric atv

Place of Origin:

China

Brand Name:

RONGYAO

Certification:

EC,EEC,DOT,EPA

Model Number:

youth racing atv110-17

Contact Us
Request A Quote
Product Details
Product Name:
110 Youth Racing Atv
Max Horsepowe:
7.07HP 5.2KW/8000(r/min)
Max Speed:
60 Km/h
Battery:
12 V/5 AH
Brakes,front/rear:
DRUM / DISC
Dimensions (L X W X H):
1500×910×960 Mm
Highlight:

racing 4 wheelers

,

youth electric atv

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Metal Frame with Carton
Delivery Time
Within 20 Days
Payment Terms
T/T, Western Union,
Supply Ability
1000 pcs/month
Product Description

110cc,automatic clutch,7"tires,Electric start,Front drum brake,Rear disc brake,Foot brake,Fr:Hand,Rr:Foot,







Model:

youth racing atv110-17

Product Description:

Engine type 1P52FMH SINGLE CYLINDER,FOUR STROKE,AIR COOLED,ATUOMATIC,
Engine brand
Displacement 107cc(mL)
Cooling AIR COOLED
Max horsepower 7.07HP 5.2KW/8000(r/min)
Max torque 6.9N.m/6000(r/min)
Bore*stroke 52. 4×49.5 mm
Max speed 60 km/h
Climbing ability >10
Ignition C .D.I
Starting system ELECTRIC START
Battery 12 V/5 AH
Carburetor brand PZ19
Engine oil 15W/40-SE 4 stroke
Gear oil
CHASSIS ETC.
Clutch AUTOMATIC
Transmission 1D.1N.1R
Driveline CHAIN
Driving wheel RR WHEEL
Suspension,front/rear DOUBLE /SINGLE
Brakes,front/rear DRUM / DISC
Brake operation FR:HAND/ RR:FOOT
Tires,front/rear 1 6×8.00-7
Fuel capacity/type 2.0 L
Weight,G.W./N.W 105 kg/87kg
Max load 100 kg
DIMENSIONS
Wheelbase 950 mm
OA L*W*H 150 0×910×960 mm
Height to seat 680 mm
Min ground clearance 110 mm
Carton size 131x76x65
Shipping info 107T



Applications:



1. adult use only

2. Forest road

3. Riverbed, Stream,

4 Mountain Road / Beach

5. Farm / Pleasure Ground


Terms of transaction:

Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or . The delivery time is about 20 days.Automatic Clutch Youth Racing ATV 110cc With Front Drum Brake 60km/H 0




Our Service:



1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
