Product Details:
Payment & Shipping Terms:
|
| Product Name: | 110 Youth Racing Atv | Max Horsepowe: | 4.7kW/7500rpm |
|---|---|---|---|
| Max Speed: | 55km/h | Battery: | 12V4AH |
| Brakes,front/rear: | Front Drum Brake,rear Disc Brake | Dimensions (L X W X H): | 1480×950×1030mm |
| High Light: | youth electric atv,youth four wheelers |
||

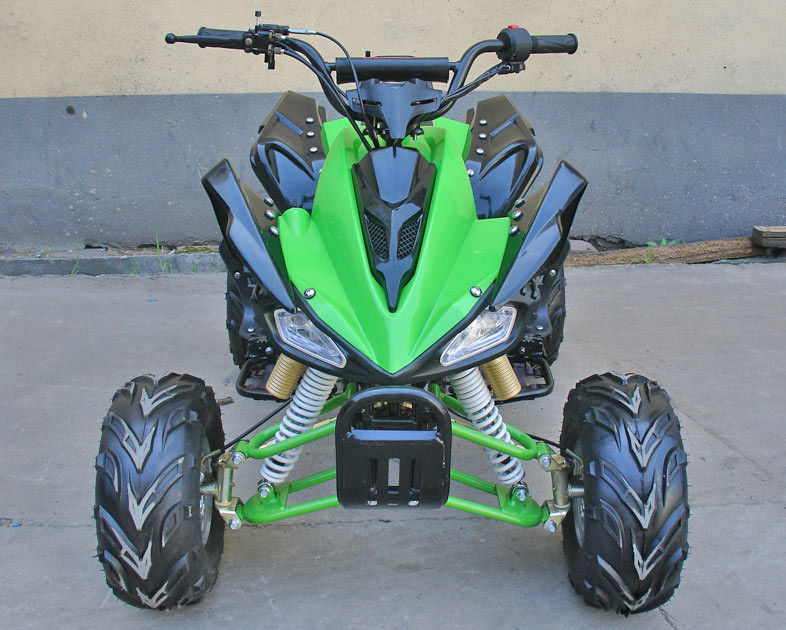

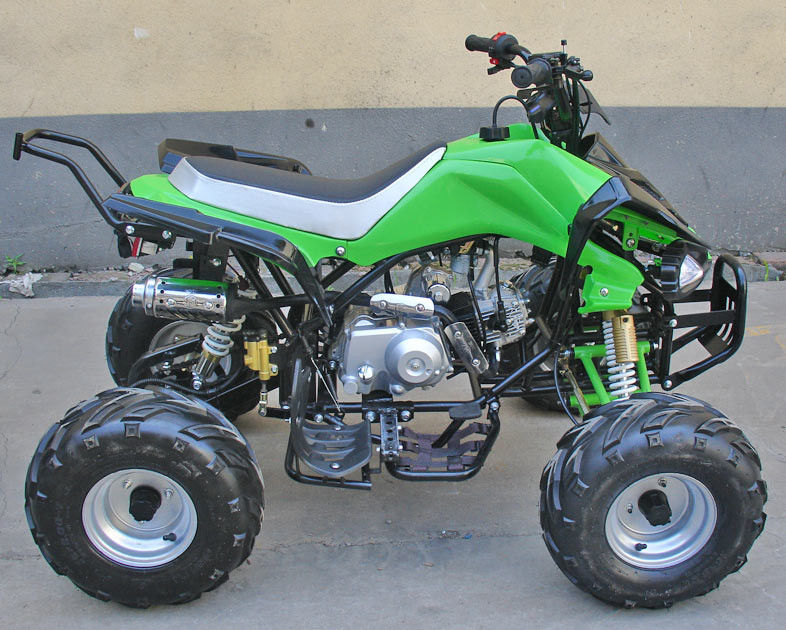

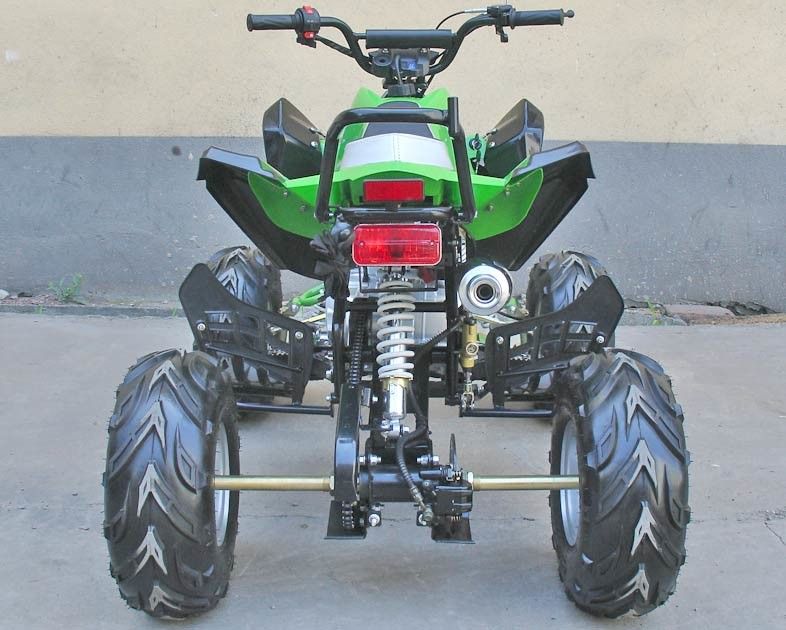

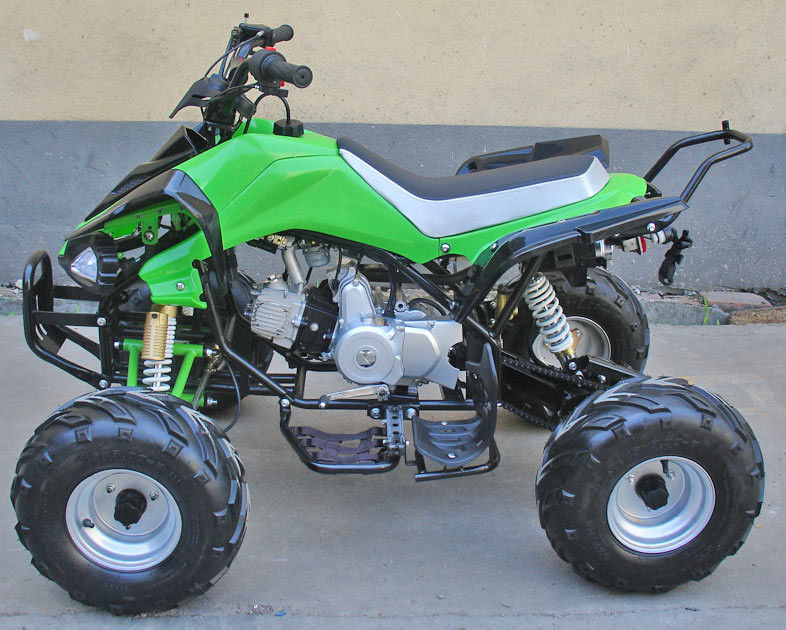

110CC,8"Tire,Automatic with reverse,foot brake,front drum brake,rear disc brake
Model:
youth racing atv110-16
Product Description:
| Engine type | 4-stroke , S ingle-cylinder,air – cooling, |
| Engine brand | T ian zhong engine |
| Displacement | 110cc |
| Cooling | A ir-cooling |
| Max horsepower | 4.7kW/7500rpm |
| Max torque | 6.9N.m/5000rpm |
| Bore*stroke | 52.4mm |
| Max speed | 55km/h |
| Climbing ability | 15° |
| Ignition | CDI |
| Starting system | E lectric start |
| Battery | 12V4AH |
| Carburetor brand | PZ19 |
| Engine oil | SAE-15W/40 |
| Gear oil | SAE-15W/40 |
| CHASSIS ETC. | |
| Clutch | Automatic clutch and reverse |
| Transmission | 4-forward with 1 reverse |
| Driveline | C hain |
| Driving wheel | 2-drive |
| Suspension,front/rear | double swing arm |
| Brakes,front/rear | front drum brake,rear disc brake |
| Brake operation | front handle control ,rear foot control |
| Tires,front/rear | 19×7-8/18×9.5－8 |
| Fuel capacity/type | 5L |
| Weight,G.W./N.W. | 126/110kg |
| Max load | 150kg |
| DIMENSIONS | |
| Wheelbase | 940mm |
| OA L*W*H | 1480×950×1030 |
| Height to seat | 720 |
| Min ground clearance | 130 |
| Carton size | 1310*830*650 |
| Shipping info | 92/40HQ |
Applications:
1. adult use only
2. Forest road
3. Riverbed, Stream,
4 Mountain Road / Beach
5. Farm / Pleasure Ground
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or moneygram. The delivery time is about 20 days.
Our Service:
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Contact Person: Mr. Jackycai
Tel: +8613761175834
