Product Details:
Payment & Shipping Terms:
|

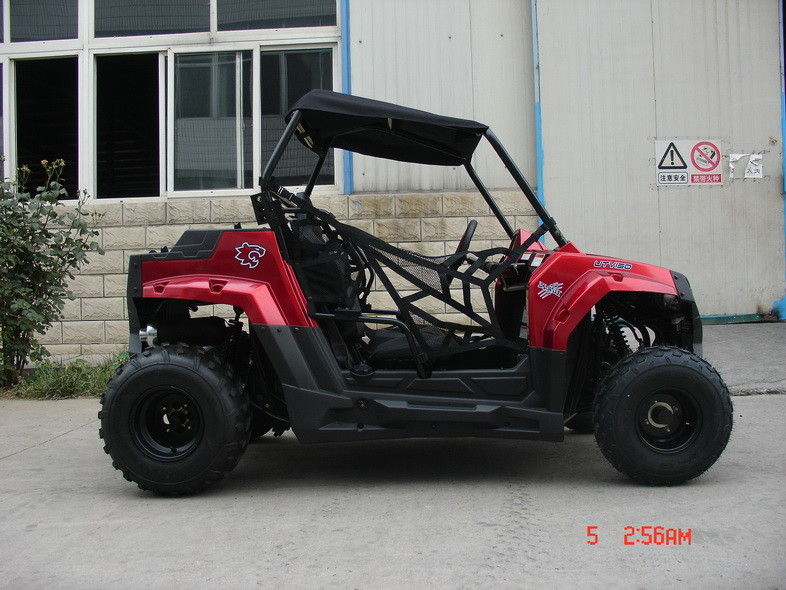

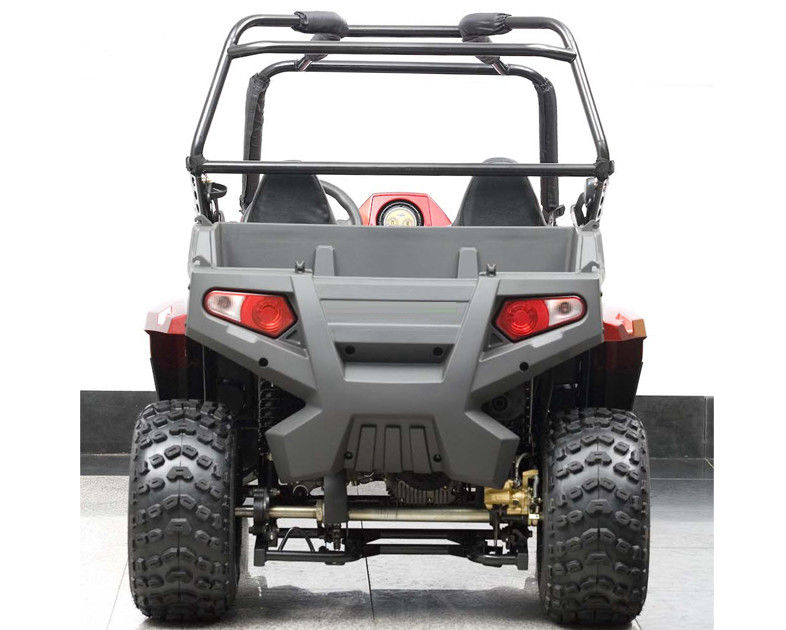

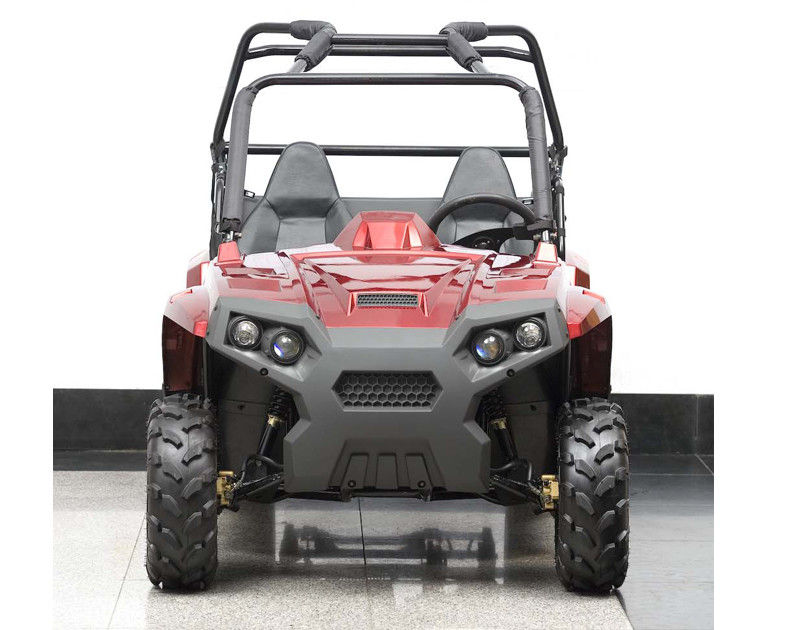

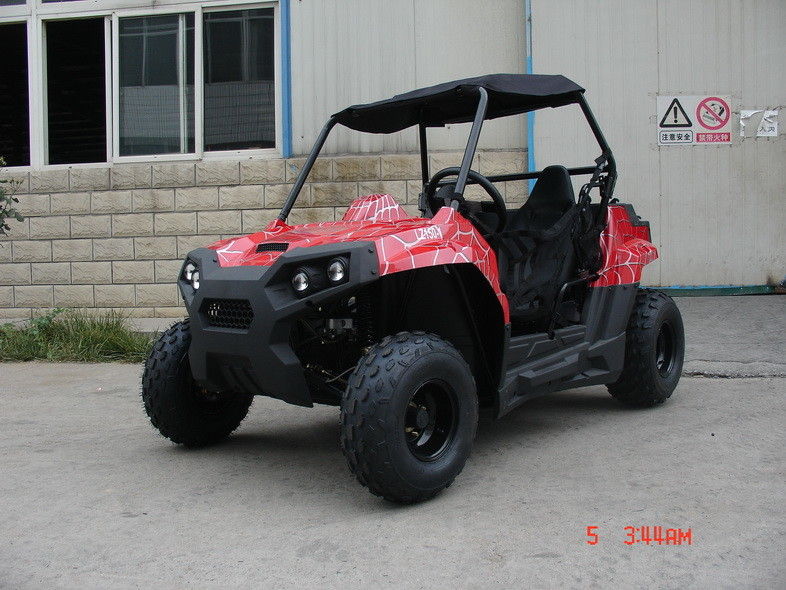

| Product Name: | 150cc Four Wheel Utility Vehicle | Engine Type: | 4-stroke,Single-Cylinder, Air/Oil-cooled |
|---|---|---|---|
| Fuel Delivery System: | Fuel Pump Carburetor | Driveline Type: | 2X4 |
| Forward Lights: | Headlights-High & Low Beam LED LIGHT | Brakes Front: | Front Dual Hydraulic Disk |
| High Light: | 4 wheel utility vehicle,recreational utility vehicle |
||
unique design; LED light; remote control; Youth Side-By-Side Vehicle. Styled after the adult , 149.6cc 4-Stroke Engine
| Engine type | JL1P57F |
| Displacement | 149.6CC |
| Cooling | Air/Oil-cooled |
| Max horsepower | 8.2HP |
| Max torque | 9.8N.m(4000r/min) |
| Bore*stroke | 57.4X57.8 |
| Max speed | 55km/h (34.2 M.P.H.) |
| Climbing ability | 15° |
| Ignition | C.D.I |
| Starting system | ELECTRIC |
| Battery | 12V7Ah |
| Engine oil | 15W/40GB11121 |
| Gear oil | GL-3 |
| CHASSIS ETC. | |
| Transmission | CHAIN |
| Driveline | CHAIN |
| Driving wheel | Rear wheel |
| Suspension,front/rear | Single A-arm/Dual Shock Swing arm |
| Brakes,front/rear | Front Dual Hydraulic Disk/Rear Single Axle Hydraulic Disk |
| Tires,front/rear | 19x7-8/20x10-9 |
| Fuel capacity/type | 9.5L(2.1 GALLON) |
| Weight,G.W./N.W. | 245kg/315kgs |
| Max load | 136kg (300 lbs) |
| DIMENSIONS | |
| Wheelbase | 1650mm (65in) |
| OA L*W*H | 2250mm *1220mm*1397mm |
| Height to seat | 500mm |
| Min ground clearance | 152mm |
| Carton size | 2290mmx1300mmx855mm |
| Shipping info | 8units/20 ; 18 units/40; 27 units/40HQ |
Applications:
For adult use only/ Forest road/ Riverbed/Stream,
Mountain Road/ On the Beach/ Farm and Pleasure Ground
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge.
This vehicle will be sent to you assembled by sea and you can ride as soon as getting it.
The terms of payment is wire transfer,western union or moneygram.
The delivery time is about 20 days.
