Product Details:
Payment & Shipping Terms:
|
| Product Name: | 110cc Atv Quad Bike | Engine Type: | 4-Stroke,single Cylinder |
|---|---|---|---|
| Transmission: | 1-speed+reverse | Suspension,front/rear: | Double A-arm/single A-arm |
| Max Horsepower: | 7.0h.p/8000rpm | Carburetor Brand: | PZ19 |
| High Light: | off road quad bikes,adult quad bikes |
||

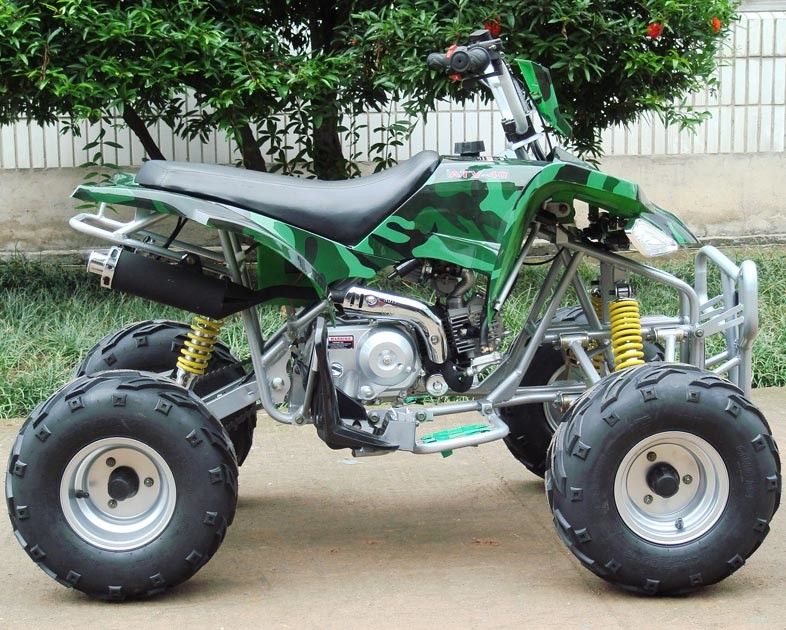

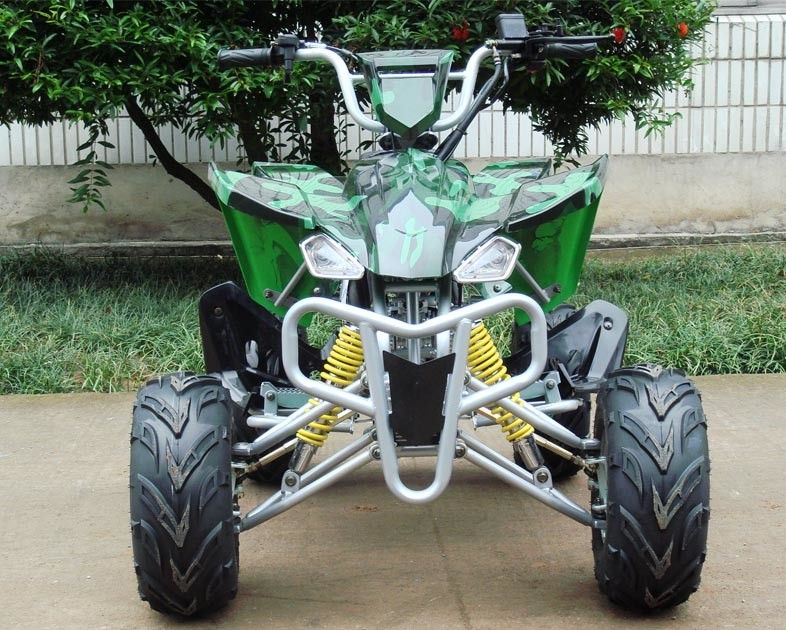

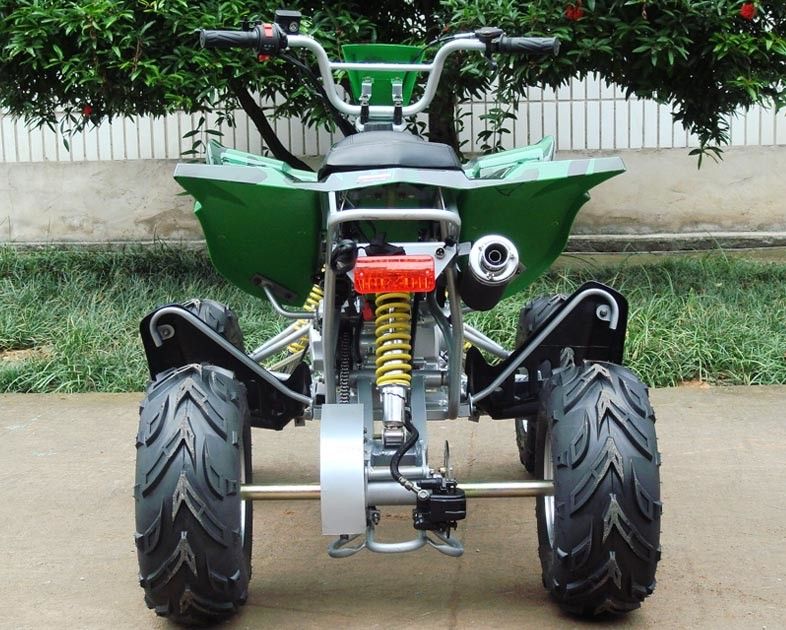

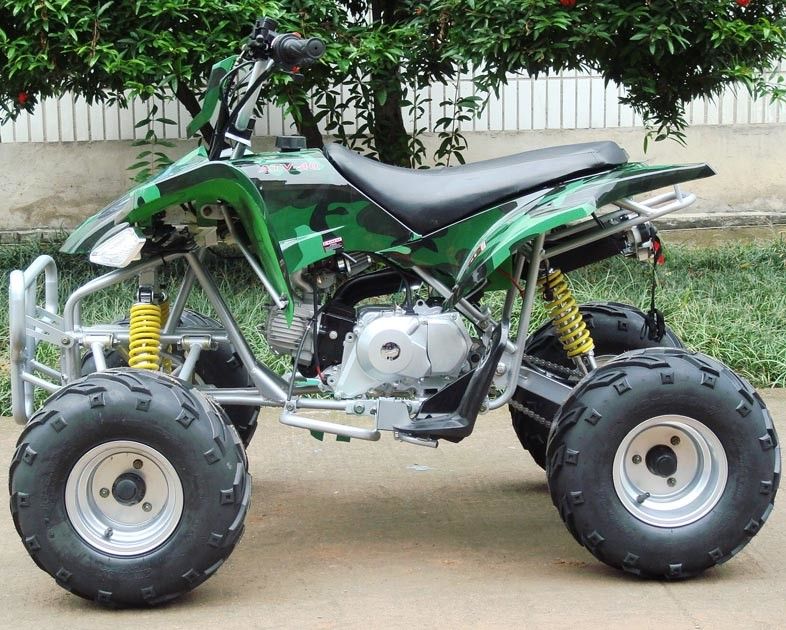

110CC MIDDLE SIZE 4-Stroke single cylinder Air cooled /water cooled of atv quad bike
Model:
atv quad bike110-7
Product Description:
| Engine type : | 4-Stroke,single cylinder |
| Engine brand : | * |
| Displacement : | 110cc |
| Cooling : | Air cooled /water cooled |
| Max horsepowe : | 6.7hp/8000rpm |
| Max torque : | 6.5n.m/5500rpm |
| Bore*stroke : | 2.06*1.95inches |
| Max speed : | 31.1mile/h |
| Climbing ability : | 15degree |
| Ignition : | C.D.I |
| Starting system : | Electric |
| Battery : | 12V9Ah |
| Carburetor brand : | PZ19 |
| Engine oil : | SAE15W/40SF |
| Gear oil : | * |
| CHASSIS ETC : | |
| Clutch : | Automatic |
| Transmission : | * |
| Driveline : | Chain-drive |
| Driving wheel : | Rear wheel drive |
| Suspension,front/rear : | Double a-arm/single a-arm |
| Brakes,front/rear : | Rear disc |
| Brake operation : | Hand |
| Tires,front/rear : | 16*8-7/16*8-7 |
| Fuel capacity/type : | 0.53gal |
| Weight,G.W./N.W : | 286.6/209.4lbs |
| Max load : | 209.4lbs |
| DIMENSIONS : | |
| Wheelbase : | 40.9inches |
| OA L*W*H : | 60.6*33.9*37.4inches |
| Height to seat : | 25.6inches |
| Min ground clearance : | 3.9inches |
| Carton size : | 50*29.5*25.6inches |
| Shipping info : | 107pcs/40HQ |
Applications:
For adult / Forest road / Riverbed / Stream / Mountain Road / Beach / Farm / Pleasure Ground
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or moneygram. The delivery time is about 20 days.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
We always do our best to meet the requirements of our customers. Any inquiries from our customer will get our immediate attention. We guarantee to reply within 12 hours. Yijie has a first-class dept to serve our customers at 24 hours.The Company guarantees to solve each problem with hundred percent replies, hundred percent without missing, and in detailed work plans under strict organizing and supervising systems. And the quick response and action to serve the markets has became a core competitiveness of Rongyao.
