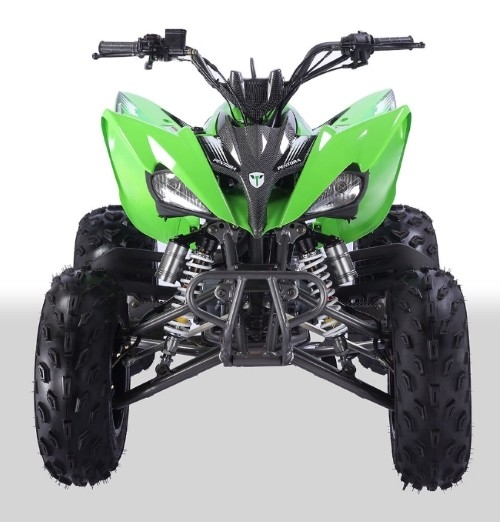

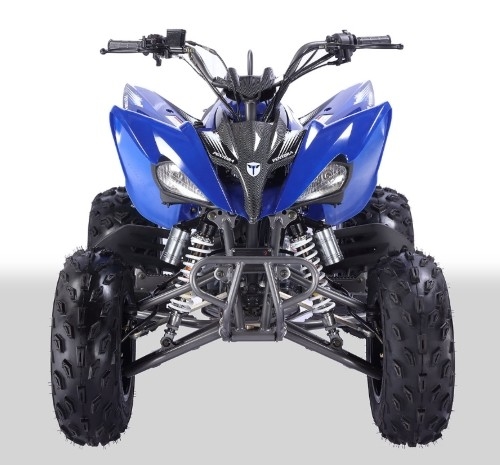

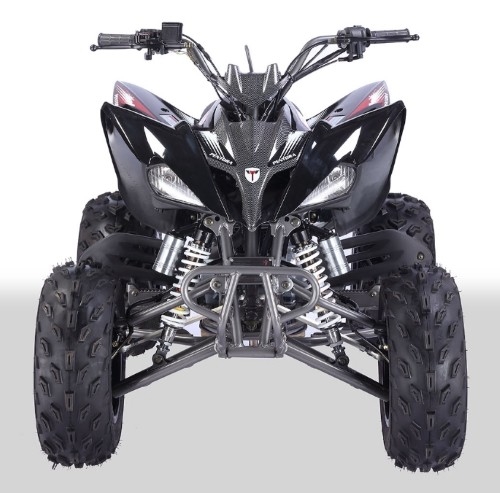

223mL Capacity 250cc Atv Quad

223mL Capacity 250cc Atv Quad

racing 4 wheelers

youth four wheelers

Place of Origin:

China

Brand Name:

RONGYAO

Certification:

EC,EEC,DOT,EPA

Model Number:

youth racing atv250cc39

Contact Us
Request A Quote
Product Details
Product Name:
250 Youth Racing Atv
MAX.POWER::
12(1±5%)kW /7500(1±5%)rpm
Max Speed:
70km/h (43mph)
Battery:
12V/7HA `
Brakes,front/rear:
F&R HYDRAULIC DISC
Dimensions (L X W X H):
1625*1060*1065mm (64"x42"x42")
Highlight:

racing 4 wheelers

,

youth four wheelers

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Metal Frame with Carton
Delivery Time
Within 20 Days
Payment Terms
T/T, Western Union,
Supply Ability
1000 pcs/month
Product Description

250cc Atv Quad 4 Stroke Manual Four Wheeler SINGLE CYLINDER C.D.I, 250cc air cooler 2 valves 4-STROK







Model:

youth racing atv250cc39

Product Description:

  • L×W×H: 1625*1060*1065mm (64"x42"x42")
  • FRONT WHEELBASE: 820mm (32")
  • REAR WHEELBASE: 830mm (33")
  • SEAT HEIGHT: 790±15 mm (31"±1")
  • RIDE HEIGHT: 225mm (9")
  • HANDLE HEIGHT: 1000mm (39')
  • PACKING SIZE: 1460*880*860mm (57"x35"x34")
  • MINIMUM TURNING CIRCLE DIAMETER: 5900±500mm (232"±19")
  • TURNING ANGLE: <45°
  • RATED LOAD: 100kg (220lbs)
  • NET WEIGHT: 149kg (328lbs)
  • GROSS WEIGHT (WITH PACKING): 177kg (390lbs)
  • F&R BRAKE: F&R HYDRAULIC DISC
  • F&R BRAKE OPERATION TYPE: FRONT HAND BRAKE, REAR FOOT BRAKE
  • F&R RIM: 10*5.5AT/9*8.0AT
  • F&R TIRE: AT20*7.0-10/AT19*10-9
  • TRANSMISSION: CHAIN
  • FUEL TANK: 9L (2gal)
  • BATTERY: 12V/7HA `
  • MAXIMUM SPEED: 70km/h (43mph)
  • STARTING PERFORMANCE: 15S
  • CLIMBING PERFORMANCE: 21°
  • PARKING PERFORMANCE: ≥18°
  • SINGLE CYLINDER,C.D.I, 250cc air cooler 2 valves,4-STROKE
  • BRAND: LONCIN
  • BRORE×STROKE: 65.5x66.2mm
  • Capacity: 223mL
  • COMPRESSION RATIO: 9.0:1
  • MAX.POWER: 12(1±5%)kW /7500(1±5%)rpm
  • MAX.TORQUE: 17(1±5%)N · m /6000(1±5%)rpm
  • Min no load speed: 1500(1±10%) r /min
  • Min fuel consumption rate: 354g / kw.h
  • Start: Electrical start


Applications:



1. adult use only

2. Forest road

3. Riverbed, Stream,

4 Mountain Road / Beach

5. Farm / Pleasure Ground


Terms of transaction:

Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or . The delivery time is about 20 days.




Our Service:



1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
