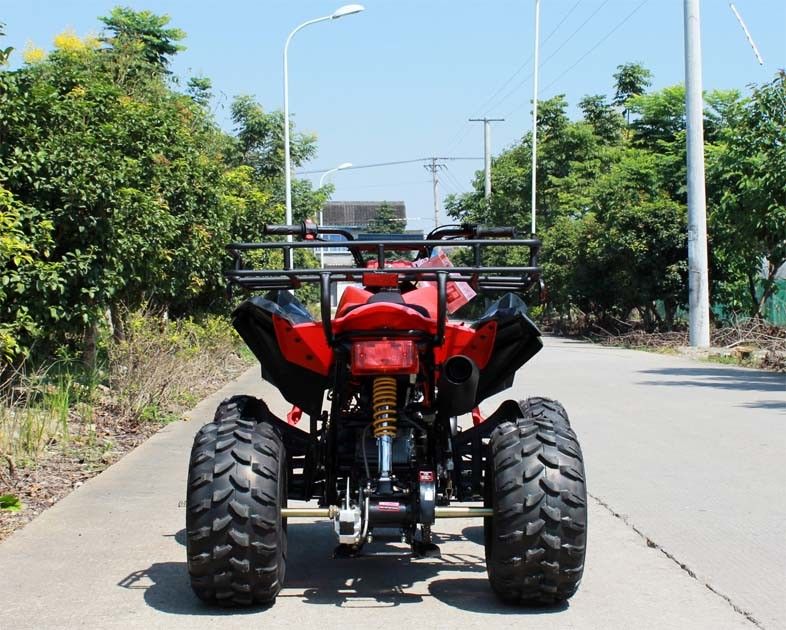

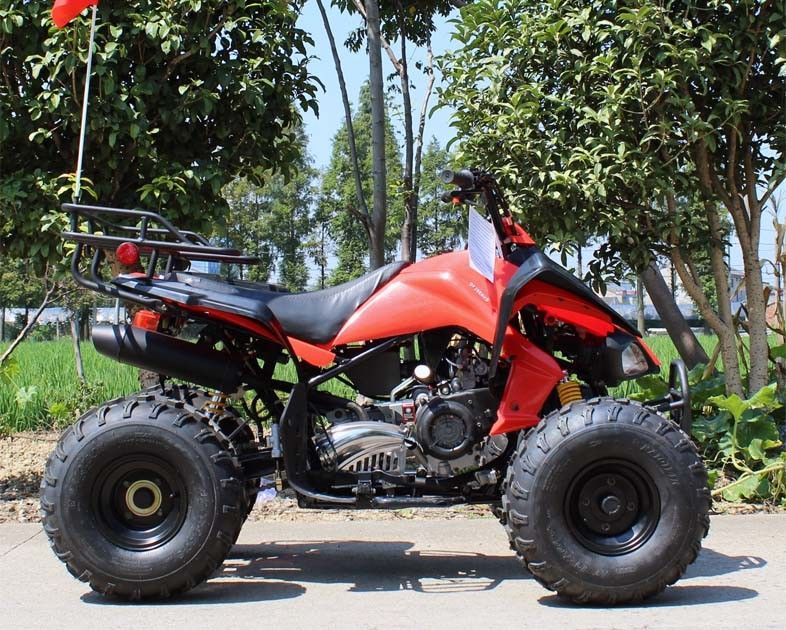

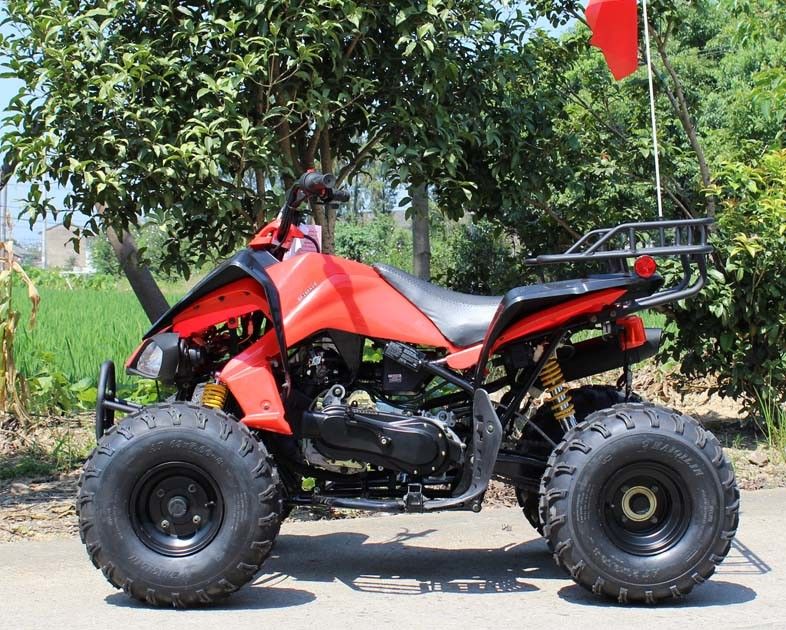

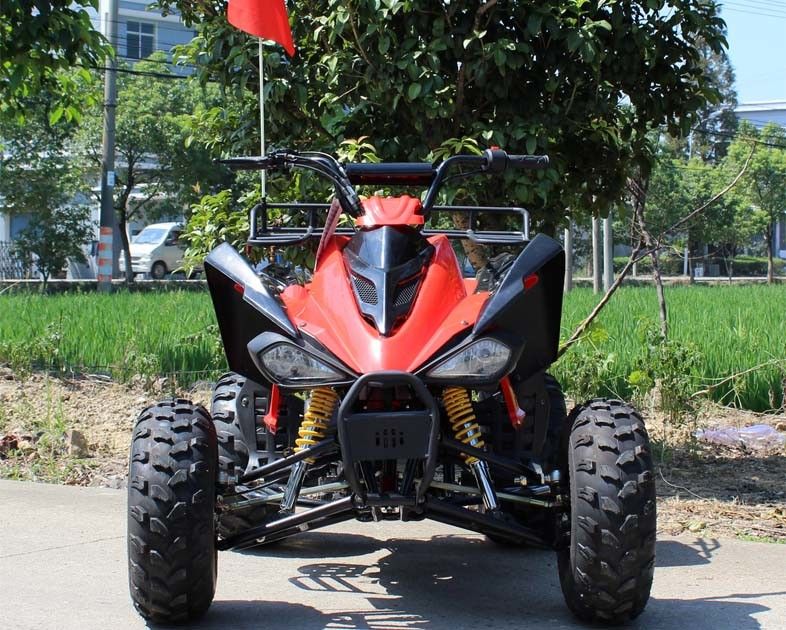

13.9HP Water Cooled Youth Racing ATV 200cc 4 Wheeler With Rear Disc Brake

13.9HP Water Cooled Youth Racing ATV 200cc 4 Wheeler With Rear Disc Brake

13.9HP Water Cooled Youth Racing ATV 200cc 4 Wheeler With Rear Disc Brake
13.9HP Water Cooled Youth Racing ATV 200cc 4 Wheeler With Rear Disc Brake 13.9HP Water Cooled Youth Racing ATV 200cc 4 Wheeler With Rear Disc Brake 13.9HP Water Cooled Youth Racing ATV 200cc 4 Wheeler With Rear Disc Brake 13.9HP Water Cooled Youth Racing ATV 200cc 4 Wheeler With Rear Disc Brake

Large Image :  13.9HP Water Cooled Youth Racing ATV 200cc 4 Wheeler With Rear Disc Brake Get Best Price

Product Details:
Place of Origin: China
Brand Name: RONGYAO
Certification: EC,EEC,DOT,EPA
Model Number: four wheel atv200-16
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Metal Frame with Carton
Delivery Time: Within 20 Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/month
Detailed Product Description
Product Name: 200cc 4 Wheeler Max Power(kw/r/min): 8.3 KW @/8000RPM
Driveline: Belt + Chain Brake Type(front / Rear): F. Drum Brake R. Disc Brake
Wheelbase(mm): 1140mm Min Ground Clearance: 140mm
High Light:

racing four wheelers

,

4 wheeler atv

200cc Water cooled,13.9HP,Chain drive,Front drum brake,Rear disc brake



Model:

four wheel atv200-16

Product Description:

Engine type 161QMK
Displacement 168.9CC
Cooling Air cool
Max horsepower 8.3 KW @/8000RPM
Max torque 11.0 NM @6000RPM
Bore*stroke 61*57.8 mm
Max speed 60KM
Ignition CDI
Starting system Electric
Battery 12V 9AH
Engine oil SF-15W/40W
CHASSIS ETC.
Transmission CVT
Driveline Belt + Chain
Driving wheel Rear axle
Suspension,front/rear F. Twin Arm R. Single shock
Brakes,front/rear F. Drum Brake R. Disc brake
Tires,front/rear 19*7-8 / 20*9.5-8
Fuel capacity/type 5 L
Weight,G.W./N.W. 171 Kg / 148KG
Max load 75 kg
DIMENSIONS
Wheelbase 1140mm
OA L*W*H 1680*1130*1100 mm
Height to seat 760mm
Min ground clearance 140mm
Carton size 1490*850*860mm
Shipping info 66 unit/ 40HQ













































































Competitive Advantage:



Our product strategy: Based on technology development center in Shanghai, with Shanghai's engineering design and machining technology, positioning a high standard of quality, and integration of resources, large-scale production in the mainland by Shanghai standards, we provide customers with cost-effective products. Strengthen customer relationship management, to promote the standardization of products, increase investment in technical resources, strengthen the control of the key parts and meanwhile extend to the core components of the industrial chain.



Our marketing strategy: Expand domestic and foreign markets at the same time. Develop dealers who focus on quality and who are service-oriented to consumers. We maintain the rights and interests of our dealers by providing high standard quality, professional service system and the increasingly powerful brand strength. We grow together and we will both win the market.



Our after-sales service strategy: Win the trust of consumers with active, professional and efficient service!
