Place of Origin:
China
Brand Name:
RONGYAO
Certification:
EC,EEC,DOT,EPA
Model Number:
utility vehicle atv500-5

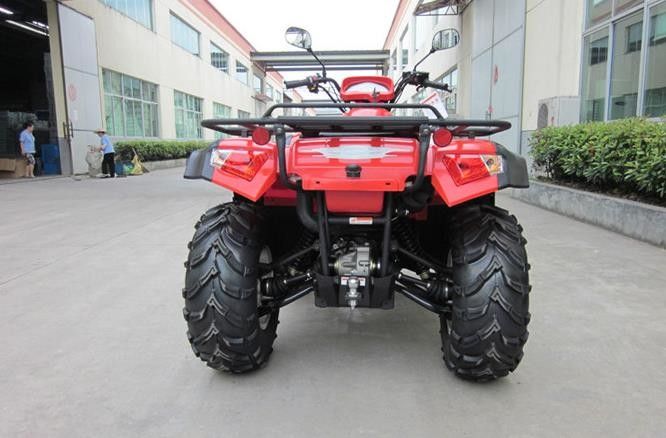

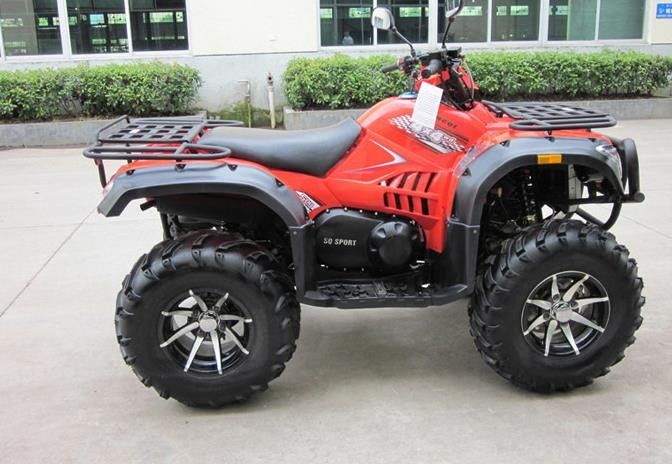

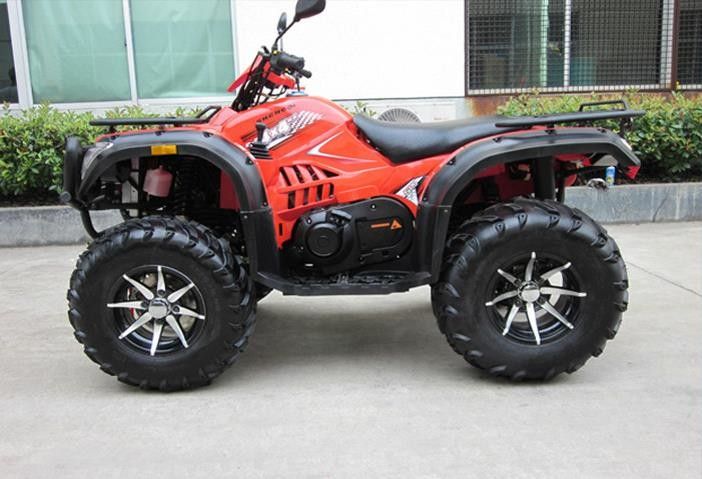

utility vehicle quad FARM 500cc ATV EEC/EPA 4x4 Water Cooled Farm Utility ATV/Quad
Model:
utility vehicle atv500-5
Product Description:
Model number | 500cc ATV utility vehicle quad | |
Warranty | 6 months | |
Approval | EPA / EEC | |
Engine type | Single-cylinder, water-cooled | |
Engine stroke | 4-Stroke | |
Valve configuration | SOHC | |
Bore*Stroke (mm/in) | 92.0*75.0 / 3.6*2.9 | |
Displacement (cc) | 498 / 500 | |
Compression ratio | 10.2:1 | |
Ignition type | DC C.D.I | |
Carburetion type | Mikuni | |
Maximum speed(km/h) | 80 km/h | |
Transmission type | V-belt automatic | |
Primary drive (rear wheel) | Shaft | |
Reverse | Yes | |
Front tire | AT 25 x 8 - 12 | |
Rear tire | AT 25 x 10 - 12 | |
Front brake type | Dual disc brake | |
Rear brake type | Single disc brake | |
Front suspension | Double wishbone | |
Rear suspension | Double wishbone | |
Product dimensions (mm/in) | 2085*1180*1175 / 82.1*46.5*46.3 | |
Ground clearance (mm/in) | 252 / 9.9 | |
Wheelbase (mm/in) | 1300 / 51.2 | |
Minimum turning radius (mm/in) | 3500 / 137.7 | |
Dry weight (kg/lbs) | 320 / 704 | |
Fuel capacity (L/gal) | 22 / 5.8 | |
Seat height (mm/in) | 865 / 34 | |
Number of seats | 2 | |
Driveline type | Selectable 4X2 / 4X4 / 4X4-lock | |
Number of driveline modes | 3 | |
Limited slip differential | Front differential | |
Differential lock | Front differential lock | |
Front storage | Yes | |
Rear storage | No | |
Auto dump bed | No | |
Headlight (s) | Incandescent lamp |
Applications:
1. adult
2. Forest road
3. Riverbed, Stream
4. Mountain Road
5. Beach
6. Farm
7. Pleasure Ground
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or . The delivery time is about 20 days.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
1. All of the ATV Frame is use the 2.5mm seamless steel pipe ligt arc welding,production by our factory workeshop.reliable and stability.
2. All of the ATV engine is come from original engine factory. have not the renovation engine.
3.Each one ATV come out from factory, All must go through rigorous drive testing.To ensure the quality of each ATV.
4.We have one Professional team to do the after-sales service, Provide the solution to solve your worries on the ATV problems.
Warranty time
We supply you 12 months for warranty time, during the warranty time, we supply you free parts!!
