Place of Origin:
China
Brand Name:
RONGYAO
Certification:
EC,EEC,DOT,EPA
Model Number:
utility vehicle atv550-2

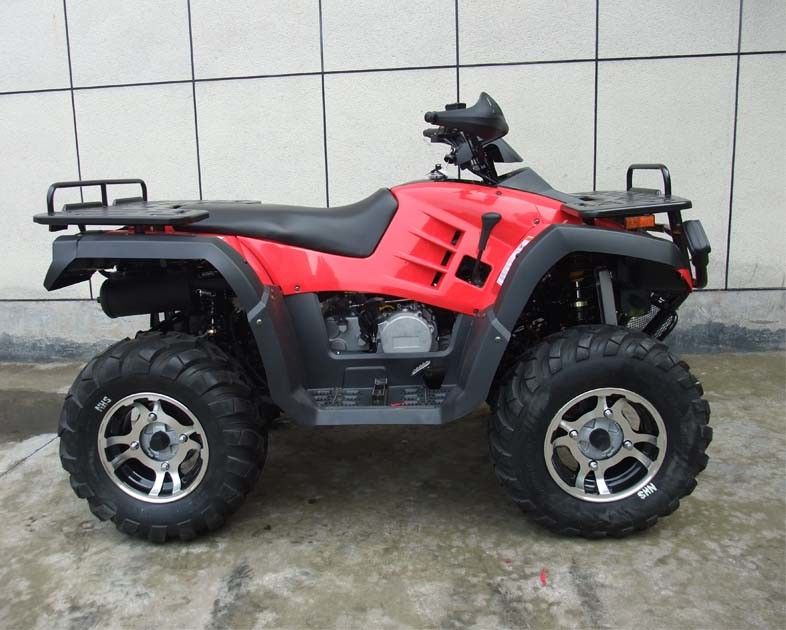

4 STROKE, V-TWIN CYLINERS, CB ENGINE,CVT,550cc utility vehicle ATV
Model:
utility vehicle atv550-2
Product Description:
| Engine type | 4 STROKE, V-TWIN CYLINERS, CB ENGINE,CVT |
| Engine brand | FEISHEN |
| Displacement | 552CC |
| Cooling | WATER COOLED |
| Max horsepower | 36HP/7500RPM |
| Max torque | 45N.M/5500RPM |
| Bore*stroke | 72.5mm x 66.8mm |
| Max speed | 90KM/H |
| Climbing ability | 25 |
| Ignition | ECU |
| Starting system | ELECTRIC START & PULL START |
| Battery | 12V/18AH |
| EFI brand | DELPHI |
| Engine oil | 15W-40 |
| Gear oil | 85W-90 |
| CHASSIS ETC. | |
| Clutch | AUTOMATIC |
| Transmission | H/L/R |
| Driveline | SHAFT |
| Driving wheel | 4WD |
| Suspension,front/rear | FR.MCPHERSON/RR.DOUBLE WISHBONE |
| Brakes,front/rear | DISC/DISC |
| Brake operation | HANDLE & FOOT PEDAL |
| Tires,front/rear | 25x8-12, 25x10-12 |
| Fuel capacity/type | 12.5L |
| Weight,G.W./N.W. | G.W.360KGS/N.W.285KGS |
| Max load | 100KGS |
| DIMENSIONS | |
| Wheelbase | 1271MM |
| OA L*W*H | 2016x1180x1237MM |
| Height to seat | 895MM |
| Min ground clearance | 183MM |
| Carton size | 2310x1320x870MM |
| Shipping info | 8PCS/18PCS/27PCS |
Applications:
1. adult
2. Forest road
3. Riverbed, Stream
4. Mountain Road
5. Beach
6. Farm
7. Pleasure Ground
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or . The delivery time is about 20 days.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
1. All of the ATV Frame is use the 2.5mm seamless steel pipe ligt arc welding,production by our factory workeshop.reliable and stability.
2. All of the ATV engine is come from original engine factory. have not the renovation engine.
3.Each one ATV come out from factory, All must go through rigorous drive testing.To ensure the quality of each ATV.
4.We have one Professional team to do the after-sales service, Provide the solution to solve your worries on the ATV problems.
Warranty time
We supply you 12 months for warranty time, during the warranty time, we supply you free parts!!
