2 - Stroke 50cc Atv Quad Bike With Front / Rear Disc Front / Rear Shock Absorber

I'm Online Chat Now

2 - Stroke 50cc Atv Quad Bike With Front / Rear Disc Front / Rear Shock Absorber

China 2 - Stroke 50cc Atv Quad Bike With Front / Rear Disc Front / Rear Shock Absorber supplier
2 - Stroke 50cc Atv Quad Bike With Front / Rear Disc Front / Rear Shock Absorber supplier 2 - Stroke 50cc Atv Quad Bike With Front / Rear Disc Front / Rear Shock Absorber supplier 2 - Stroke 50cc Atv Quad Bike With Front / Rear Disc Front / Rear Shock Absorber supplier 2 - Stroke 50cc Atv Quad Bike With Front / Rear Disc Front / Rear Shock Absorber supplier

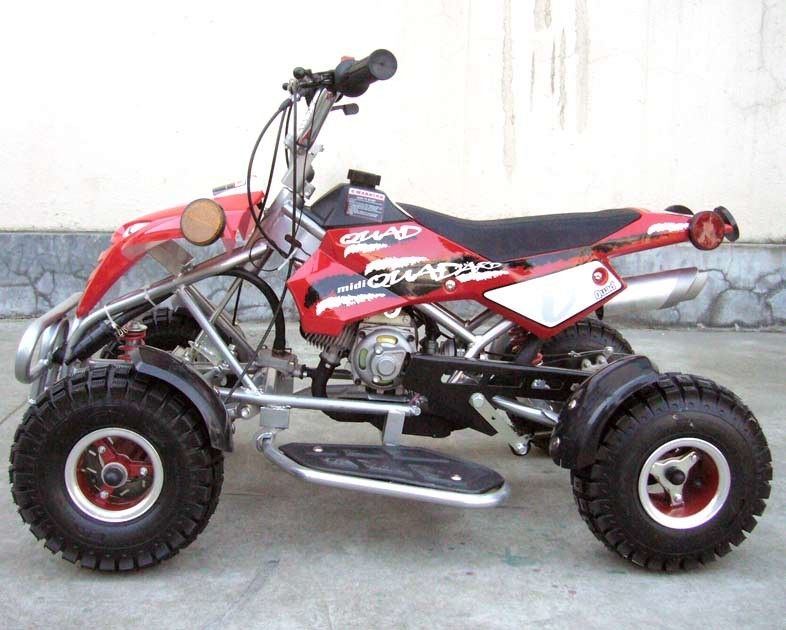

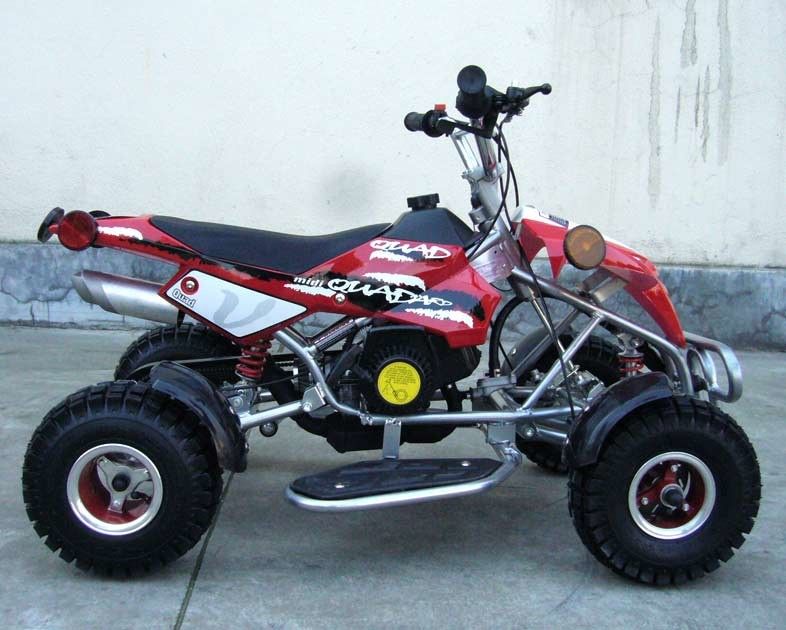

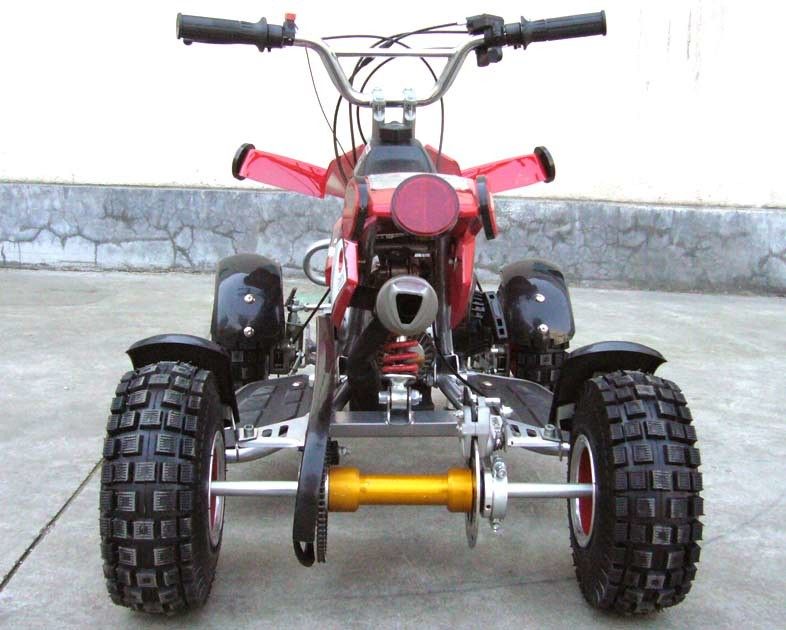

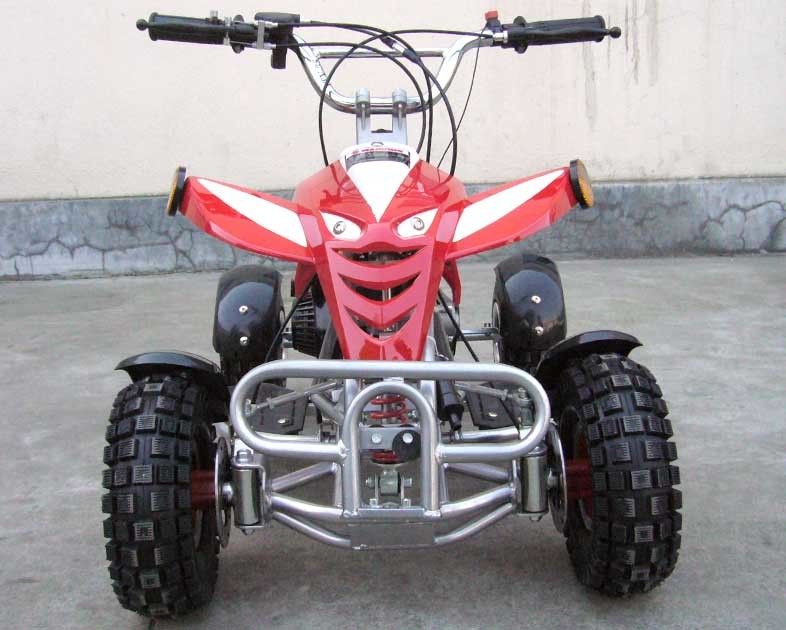

Large Image :  2 - Stroke 50cc Atv Quad Bike With Front / Rear Disc Front / Rear Shock Absorber

Product Details:

Place of Origin: China
Brand Name: RONGYAO
Certification: EC,EEC,DOT,EPA
Model Number: atv quad bike50-3

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Metal Frame with Carton
Delivery Time: Within 20 Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Product Name: 50cc Atv Quad Bike Battery: 12V/9Ah
Clutch: Manual Driving Wheel: Rear Wheel Drive
Suspension,front/rear: Double A-arm/ Single A-arm Brake Operation: Hand+foot

50 cc single-cylinder air cooled 2-stroke Front/Rear disc Front/Rear shock absorber of atv quad bike





Model:

atv quad bike50-3

Product Description:



GASOLINE ENGINE SPECIFICATIONS 49CC,single cylinder,2stroke
Pull start
LOW OIL CONSUMPTION 20KM/L
LUBRICANT SE15W/40 SF 10W/30
SPARK PLUG BM6A
COMPRESSION RATIO 9.0:1
Highest POWER(Kw/rpm) 1.6Kw/7000rpm
RATE TORQUE(Nm/min) 2.2N.m/6000(r/min)
  20(Gasoline ):1(Engine Oil)
FUEL RATIO
IGNITION DEVICE HIC
START METHOD Electric start
CARBURETOR Membrane
AIR CLEANER Semi-dry ,foam filter
BRAKE F/L&R single machanical disc/φ120;
R/single disc/ φ140
BATTERY SPECIFIC 12V/4A Dry battery
FUEL TANK 1.5L
MAX LOAD CAPACITY(kg) 70
MAX SPEED ≤40Km/h
BRAKE SYSTEM F/R Handle brake
TRANSMISSION Chain
RIM Aluminum
BUMPER F/R Spring shock
TIRE F/R :4.10-4
N.W/G.W(kg) 33/41.5
PRODUCT SIZE (mm) 1000×590×640
PACKING SIZE (mm) 995*580*430




Applications:



For adult use only, Forest road, Riverbed, Stream,

Mountain Road, On the Beach, Farm and Pleasure Ground




Terms of transaction:

Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or moneygram. The delivery time is about 20 days.




2 - Stroke 50cc Atv Quad Bike With Front / Rear Disc Front / Rear Shock Absorber



After-sale service

1. 1 year warranty

2. How to use equipment and professional maintenance guidance

3. Provide professional management recommendations, management consulting, product information

4. 24 hours service/complaints





Thank you for taking the time to view our information,

please allow me to do this to your deeper understanding of:
Long-term relationship, communication is the best bridge.
Just tell us: What do you want ?
We promise:
Excellent reputation, quality products, perfect service.
Look forward to your meeting !
