Front Drum Brake 110CC ATV Quad Bike Single Cylinder Electric Start Automatic Clutch

I'm Online Chat Now

Front Drum Brake 110CC ATV Quad Bike Single Cylinder Electric Start Automatic Clutch

China Front Drum Brake 110CC ATV Quad Bike Single Cylinder Electric Start Automatic Clutch supplier
Front Drum Brake 110CC ATV Quad Bike Single Cylinder Electric Start Automatic Clutch supplier Front Drum Brake 110CC ATV Quad Bike Single Cylinder Electric Start Automatic Clutch supplier Front Drum Brake 110CC ATV Quad Bike Single Cylinder Electric Start Automatic Clutch supplier Front Drum Brake 110CC ATV Quad Bike Single Cylinder Electric Start Automatic Clutch supplier

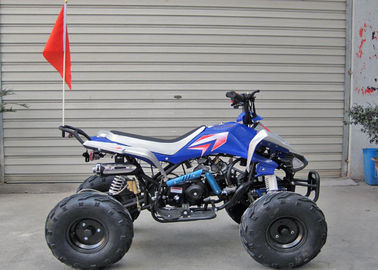

Large Image :  Front Drum Brake 110CC ATV Quad Bike Single Cylinder Electric Start Automatic Clutch

Product Details:

Place of Origin: China
Brand Name: RONGYAO
Certification: EC,EEC,DOT,EPA
Model Number: atv quad bike110-3

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Metal Frame with Carton
Delivery Time: Within 20 Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Product Name: 110cc Atv Quad Bike Engine Type: SINGLE CYLINDER、FOUR STROKE、AIR COOLED
Engine Oil: 15W/40-SE Brake Operation: FR:HAND/ RR:FOOT
Wheelbase: 950 Mm Carburetor Brand: PZ19

110CC Single cylinder 4-STROKE Air cooled Electric start automatic clutch Front drum brake​





Model:

atv quad bike110-3

Product Description:



Engine type SINGLE CYLINDER,FOUR STROKE,AIR COOLED
Engine brand Tianzong
Displacement 107 cc(mL)
Cooling AIR COOLED
Max horsepower 7.07HP 5.2KW/8000(r/min)
Max torque 6.9N.m/6000(r/min)
Bore*stroke 52.4×49.5 mm
Max speed 60 km/h
Climbing ability >10
Ignition C.D.I
Starting system ELECTRIC START
Battery 12V/ 4AH
Carburetor brand PZ19
Engine oil 15W/40-SE
Gear oil
CHASSIS ETC.
Clutch AUTOMATIC
Transmission



Driveline CHAIN
Driving wheel RR WHEEL
Suspension,front/rear DOUBLE /SINGLE
Brakes,front/rear DRUM / DISC
Brake operation FR:HAND/ RR:FOOT
Tires,front/rear 16×8.00-7
Fuel capacity/type 2.0 L
Weight,G.W./N.W. 105 kg / 87kg
Max load 90 kg
DIMENSIONS
Wheelbase 950 mm
OA L*W*H 1450×920×950 mm
Height to seat 680 mm
Min ground clearance 100 mm
Carton size 1310×760×650mm
Shipping info 107T





Feature:

ATV is the abbreviation of All Terrain Vehicle.

ATV tires is wide, increases the contact area with the ground, resulting in a strong friction, make it not easy to skid. ATV for actual transportation operations, hills/forest farm/mining area, etc.




Terms of transaction:

Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or moneygram. The delivery time is about 20 days.




Front Drum Brake 110CC ATV Quad Bike Single Cylinder Electric Start Automatic Clutch


FAQ:



Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q4: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.



Packing & Delivery
Front Drum Brake 110CC ATV Quad Bike Single Cylinder Electric Start Automatic ClutchOur most professional packaging
Front Drum Brake 110CC ATV Quad Bike Single Cylinder Electric Start Automatic ClutchTransport of large trucks to the seaport
Front Drum Brake 110CC ATV Quad Bike Single Cylinder Electric Start Automatic Clutch International transport cooperation


About the orders

1. Small quantity and mixed order are acceptable

2. Small orders and sample orders are also welcomed.
3. MOQ: If we have the items in stock, we will not request it.

4. A trial order or sample orders are welcomed.

5. Customer OEM orders are welcomes.We also can change package according to the clients request.





Front Drum Brake 110CC ATV Quad Bike Single Cylinder Electric Start Automatic Clutch
