Product Details:
Payment & Shipping Terms:
|

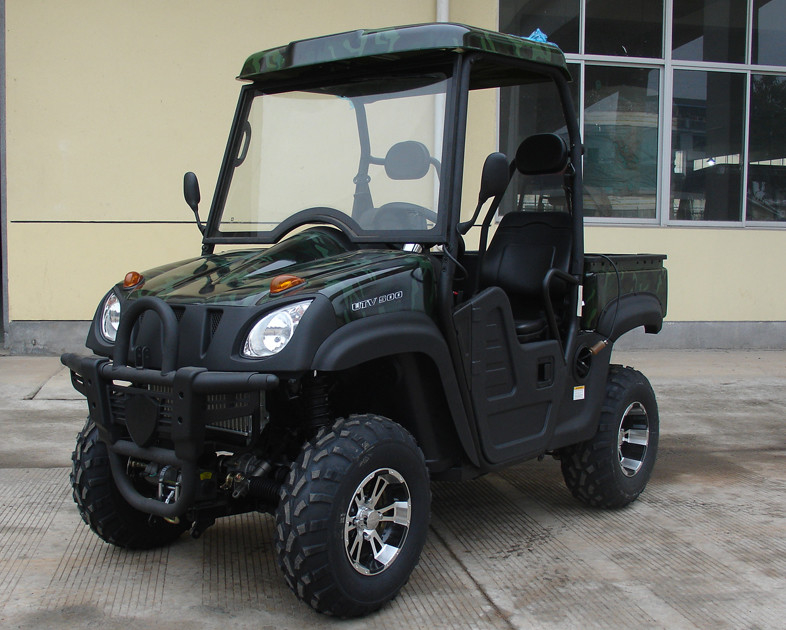

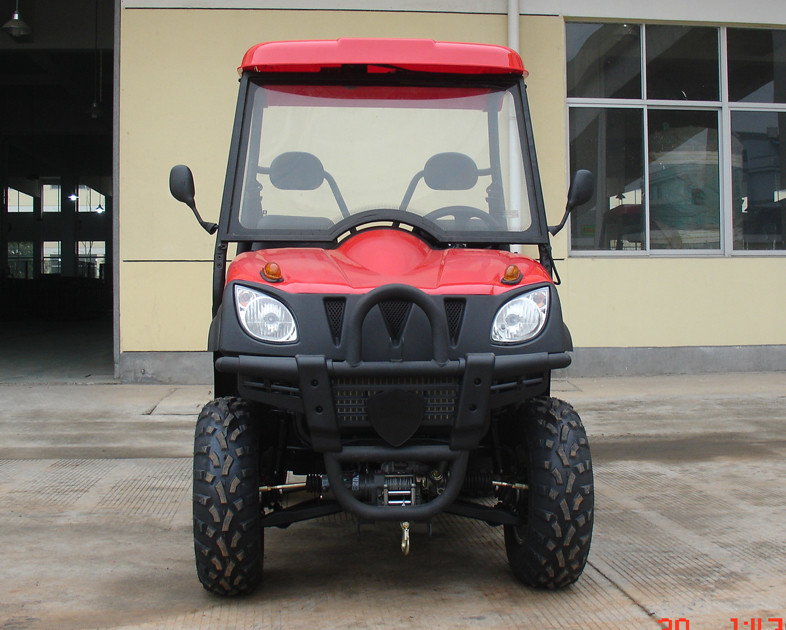

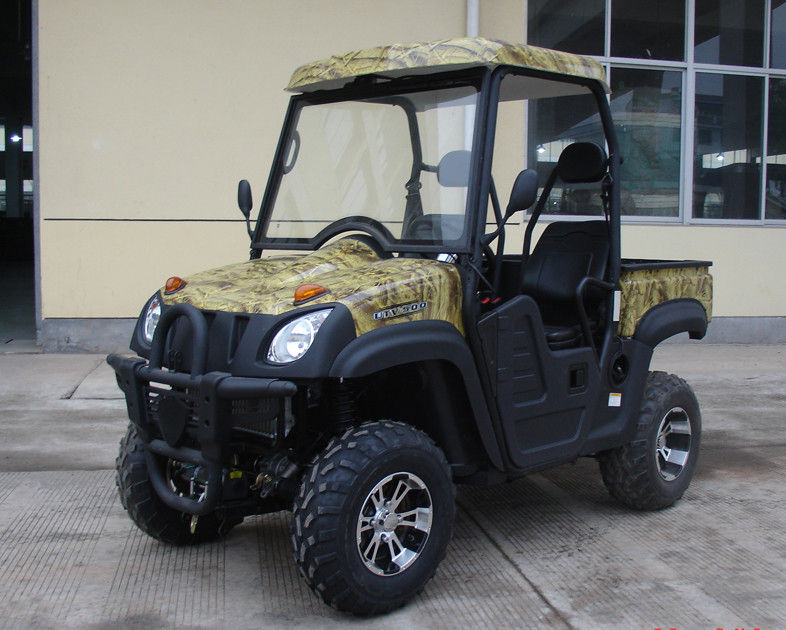

| Product Name: | 500cc Four Wheel Utility Vehicle | Transmission: | C.V.T Automatic Clutch (R/N/L/H) |
|---|---|---|---|
| Product Dimension(mm): | 102.36×50.39×77.16 In | Brakes,front/rear: | Disc /disc |
| Wheelbase: | 2824.01 In | Ground Clearance(mm): | 3.93mm |
| High Light: | Water Cooled Gas Utility Vehicles,500CC Gas Utility Vehicles,32HP Four Wheel Utility Vehicle |
||
500CC water cooled,4 x4 and 4x2 SWITCHABLE,shaft drive,4-Stroke
Model:
sports utility vehicle500cc10
Product Description:
| Engine type | Shaft drive,4 Stroke,water cooled,single cylinder |
| Engine brand | * |
| Displacement | 500CC |
| Cooling | Water cooled |
| Mxa horsepower | 32HP |
| Max torque | 38.8N.M/R/MIN |
| Bore×stroke | 34.44×32.28 in |
| Max speek | 70mile/h |
| Climbing ability | 45° |
| Ignition | C.D.I |
| Starting system | electric and recoil starter |
| Battery | 12V/34AH |
| Carburetor brand | * |
| Engine oil | Sae15W/40SF |
| Gear oil | 85W/40 |
| CHASSIS ETC. | |
| Clutch | Automatic |
| Transmission | C.V.T Automatic clutch (R/N/L/H) |
| Driveline | Shaft drive |
| Driving wheel | 4 ×4 and 4×2 SWITCHABLE |
| Suspension,front/rear | 4-wheel independent suspension |
| Brakes,front/rear | Disc /disc |
| Brake operation | Foot |
| Tires,front/rear | 25×8-12/25×10-12 |
| Fuel capacity/type | 5.8gal ,22 L |
| Weight,G.W/N.W | 650KG/590KG |
| Max load | 300kg |
| Dimensions | |
| Wheelbase | 2824.01 in |
| OA L×W×H | 102.36×50.39×77.16 in |
| Height to seat | 35.03 in |
| Min ground clearance | 3.93mm |
| Carton size | 90.94×51.96×50 in |
| Shipping info | 18PCS/40HQ |
Applications:
For adult use only, Forest road, Riverbed, Stream,
Mountain Road, On the Beach, Farm and Pleasure Ground
Terms of transaction:
We have EPT and DOT certificate and you can buy this UTV in our company. We will help you to do customs clearance when it arrives and you will get it safely.
| 1. For the sample: we can delivery the sample at the first order. but need add some sample fee to balance the export cost in Chinese custom. |
| 2. The UTV COLOR can choose by yourself on the ordinary colors,Also can do the custom-made |
| 3. Shipping:General by the sea shipping, port to port. can't do the door to door. |
| 4. The Package: The bike have been 90% assembled, with the accessory kit can be do rapid |
| assembly. Don't need professional tools and mechanic. |
| 5. Delivery: we have no stock, all of these UTV is production by the order, Just for one order, the production time general will take about 15-20days. |
| 6. If for the EEC Model, can delivery the COC certificate for you registration, Also can delivery the Certificate Of Origin(CO). |
| 7. Warranty: Engine and the Frame is one year, the other if not Artificial damage is 5 months. The spare parts also can order from us. |
