Product Details:
Payment & Shipping Terms:
|
| Product Name: | 110 Youth Racing Atv | Max Horsepowe: | 5.5/8000 Kw/r/min |
|---|---|---|---|
| Max Speed: | <=61km/h | Battery: | 12V4AH |
| Brakes,front/rear: | Front Hand Brake And Rear Leg Brake | Dimensions (L X W X H): | 1500*980*960mm |
| High Light: | racing 4 wheelers,youth four wheelers |
||

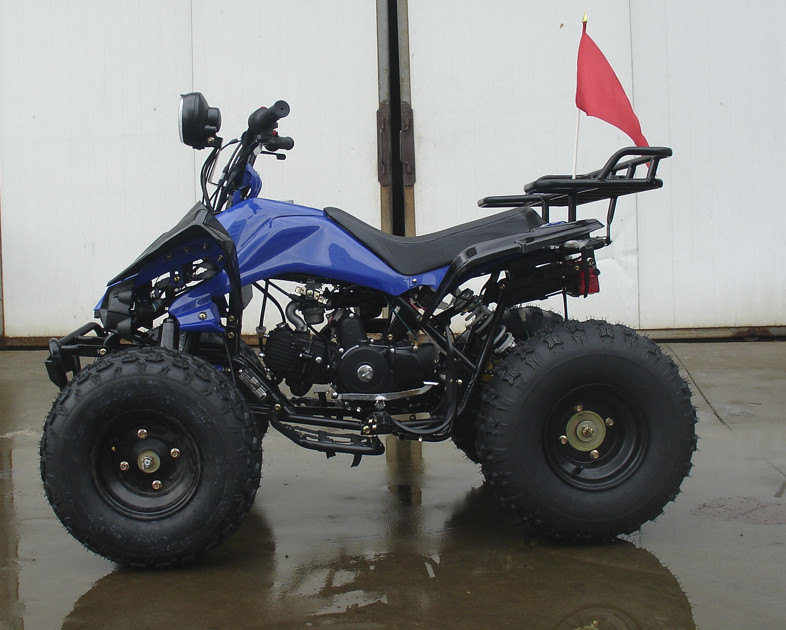

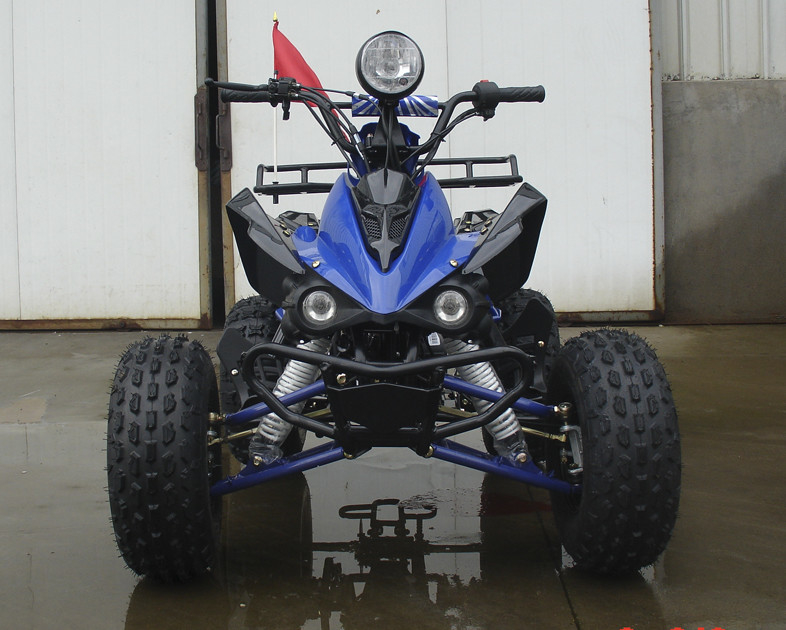

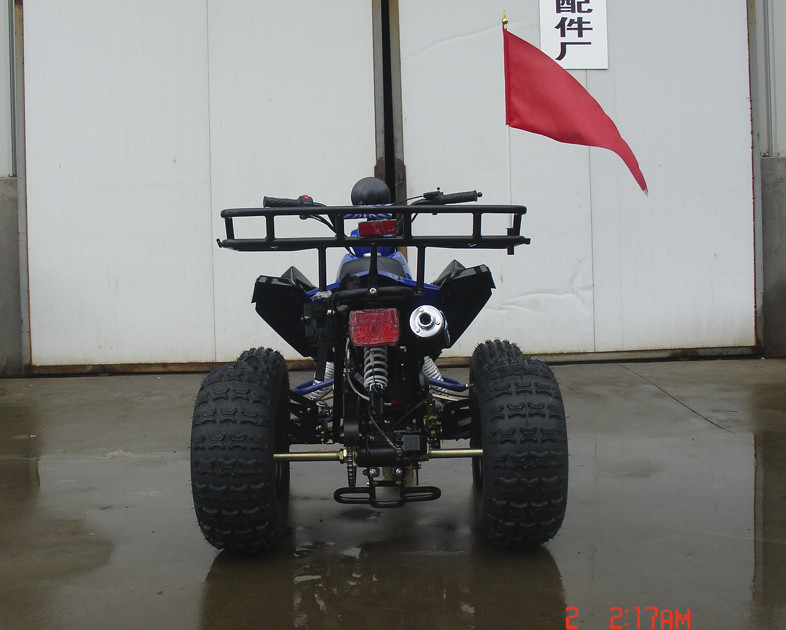

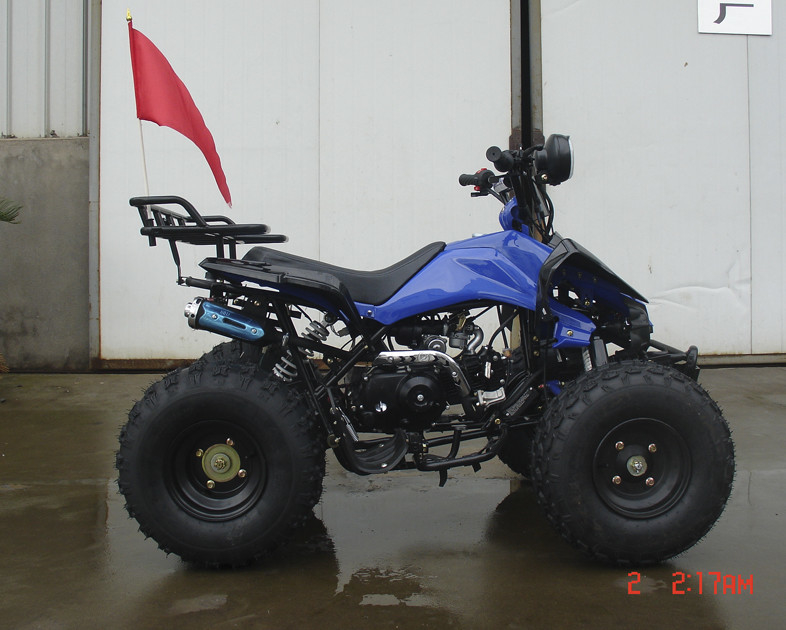

110cc 8"tires Electric start Front drum brake Rear disc brake Foot brake
Model:
youth racing atv110-27
Product Description:
| Engine type | 110cc,semi-auto,single cylinder, Four-stroke, air cooled, Chain drive, |
| Engine brand | Baitai |
| Displacement | 110cc |
| Cooling | Air cooled |
| Max horsepower | 5.5/8000 kw/r/min |
| Max torque | 7.2/6500 Nw/r/min |
| Bore*stroke | 52.4mm |
| Max speed | <=61 |
| Climbing ability | <=20 |
| Ignition | CDI |
| Starting system | Electric start |
| Battery | 12V4AH |
| Carburetor brand | KUNFU |
| Engine oil | 15w/40-se |
| Gear oil | 15w/40-se |
| CHASSIS ETC. | |
| Clutch | Automatic |
| Transmission | D-N-R |
| Driveline | Chain drive |
| Driving wheel | 2-Drive wheel |
| Suspension,front/rear | Front swing arm, dubble |
| Brakes,front/rear | Front drum Brake Rear Disc brake |
| Brake operation | Front hand brake and rear leg brake |
| Tires,front/rear | 19*7-8,18*9.5-8 |
| Fuel capacity/type | 3L |
| Weight,G.W./N.W. | 120/100KG |
| Max load | 198LBS |
| DIMENSIONS | |
| Wheelbase | 940mm |
| OA L*W*H | 1500*980*960mm |
| Height to seat | 640mm |
| Min ground clearance | 95mm |
| Carton size | 1300*760*640mm |
| Shipping info | 36pcs/20’gp,81pcs/40’gp,108pcs/40’HQ |
Applications:
1. adult use only
2. Forest road
3. Riverbed, Stream,
4 Mountain Road / Beach
5. Farm / Pleasure Ground
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or moneygram. The delivery time is about 20 days.
