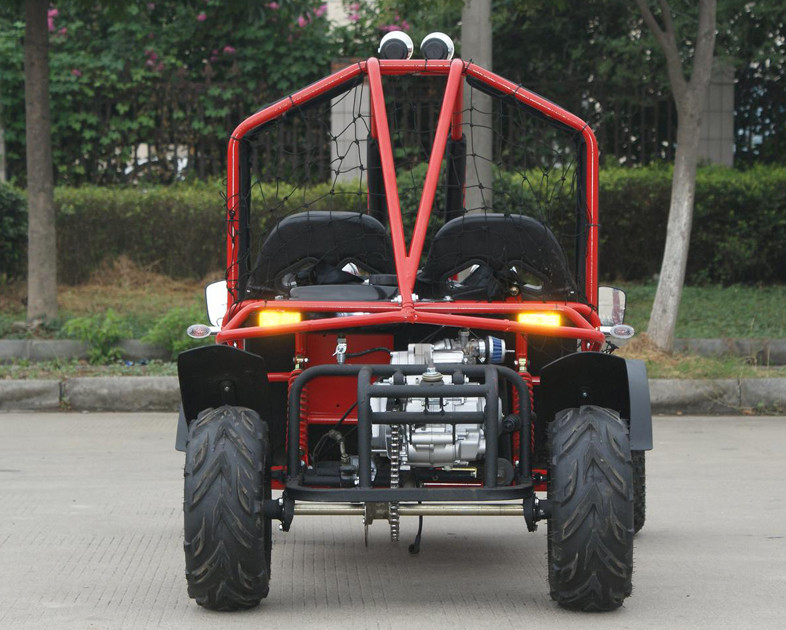

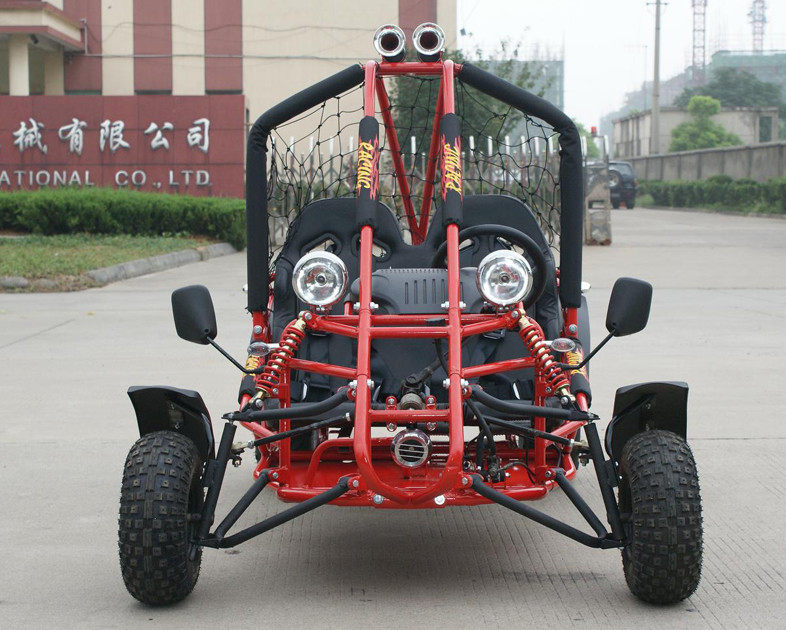

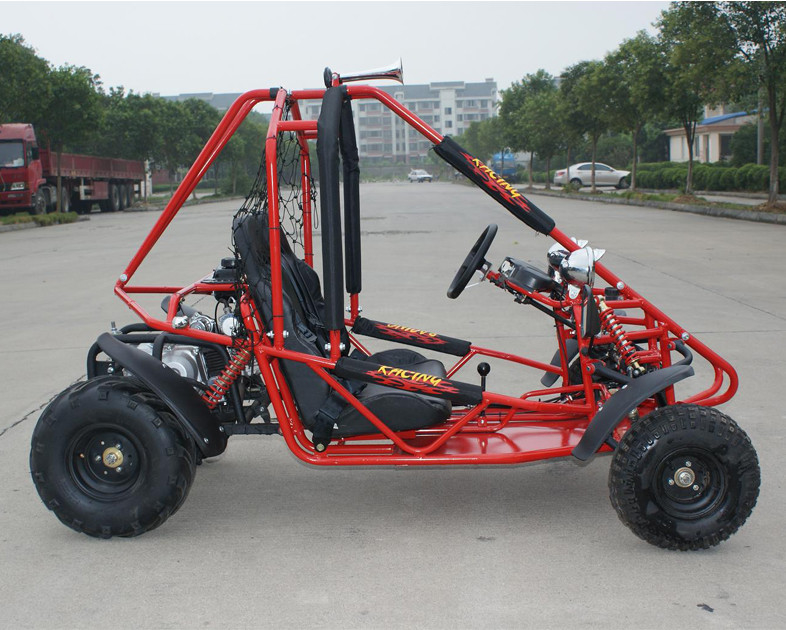

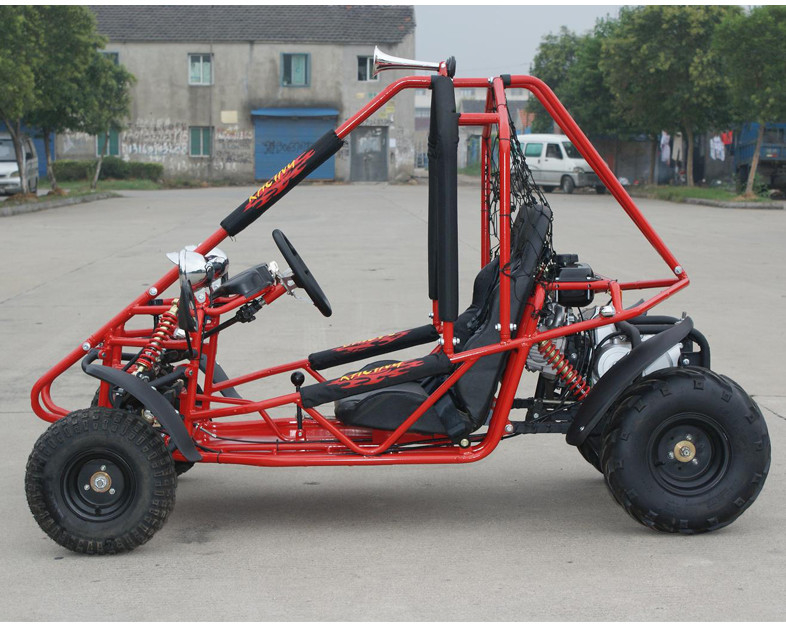

110cc Air Cooled CDI Electirc Start Single Seat Go Kart Tray Brake 12V 6.5AH Battery

110cc Air Cooled CDI Electirc Start Single Seat Go Kart Tray Brake 12V 6.5AH Battery

110cc Air Cooled CDI Electirc Start Single Seat Go Kart Tray Brake 12V 6.5AH Battery
110cc Air Cooled CDI Electirc Start Single Seat Go Kart Tray Brake 12V 6.5AH Battery 110cc Air Cooled CDI Electirc Start Single Seat Go Kart Tray Brake 12V 6.5AH Battery 110cc Air Cooled CDI Electirc Start Single Seat Go Kart Tray Brake 12V 6.5AH Battery 110cc Air Cooled CDI Electirc Start Single Seat Go Kart Tray Brake 12V 6.5AH Battery

Large Image :  110cc Air Cooled CDI Electirc Start Single Seat Go Kart Tray Brake 12V 6.5AH Battery Get Best Price

Product Details:

Place of Origin: China
Brand Name: RONGYAO
Certification: EC,EEC,DOT,EPA
Model Number: Go kartRY110-17

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Metal Frame with Carton
Delivery Time: Within 20 Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/month
Detailed Product Description
Product Name: 110cc Go Kart Buggy Displacement: 106.7cc
Max Horsepower: 4.7kw/7000(1+5%) Front Size: 145x7-6
Rear Brake Type: Tray Brake Battery: 12V 6.5AH
High Light:

motorized go karts

,

two person go kart

110cc air cooled CDI electirc start fully auto hand and foot brake system





Model:

Go kartRY110-17

Product Description:



DIMENSIONS
Overall Length 70.87 in. (1800mm)
Overall Width 47.24 in. (1200mm)
Overall Height 47.24 in. (1200mm)
Wheelbase 56.69 in. (1440mm)
Ground Clearance 8.66 in. (220mm)
ENGINE
Engine Type 106.7CC Air cooled ,single cylinder four stroke,top valve
Displacement 106.7cc
Bore x stroke 52.4mmx49.5mm
Corrected compression ratio 8.0:1
Max power 4.7kw/7000(1+5%)
Max Torque 6.9 Nm/5000(1+5%)
Min idle speed 1400r/min±150
Min fuel consumption rate ≤367g/kw.h
Min engine oil consumption rate ≤8g/kw.h
Ignition C.D.I
Staring Electric
Lubrication type Splash Lubrication
Fuel type .90#
Lubricant .15W/40
TIRE
Type Tubeless
Front size 145x7-6
Rear size 16x8-7
SUSPENSION
Front Double A-arm
Rear Swing arm
BRAKE
Rear brake type Tray brake
ELECTRICAL
Battery 12V 6.5AH



Applications:



For adult use only, Forest road, Riverbed, Stream,

Mountain Road, On the Beach, Farm and Pleasure Ground



Warranty Options:



We know you work hard for your money. We also understand the need for peace of mind in a purchase. Now, you have the power to customize your own warranty protection to fit your needs. As a standard, we always offer a free warranty of every single product we carry. We also carry parts for these products. You can browse our warranty options below:





Enjoy your order!



We are very gracious to gain you as a customer. We look forward to working with you and please feel free to send us an email at any time letting us know what you need! We are also available 24 hours a day. Sales - 0086-13761175834. Please contact us anytime you like with your service or sales needs!
