Product Details:
Payment & Shipping Terms:
|
| Product Name: | 200cc 4 Wheel Utility Vehicle | Product Size: | 2350*1220*1500 Mm |
|---|---|---|---|
| Transmission/Final Drive: | 1front+neutal+1reverse | Front Tires: | 21x7-10 (10inch Alloy Rim) Or 10 Inch Iron Rim |
| Rear Shock Length: | 460mm | Ground Clearance(mm): | 150mm |
| High Light: | 4 wheel utility vehicle,atv utility vehicles |
||

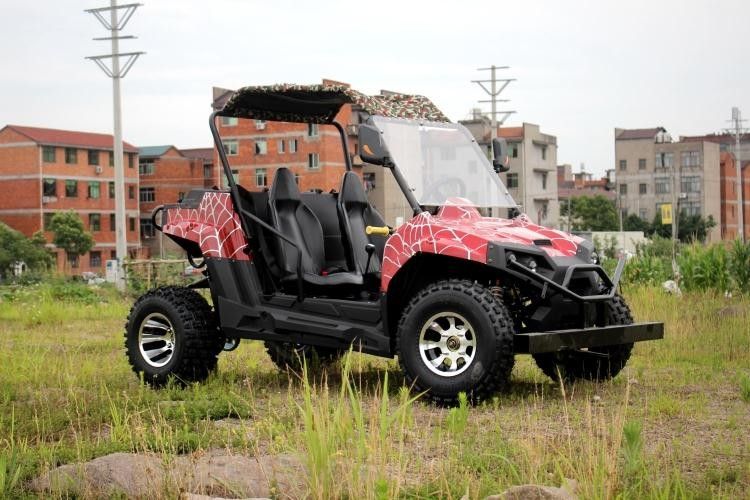

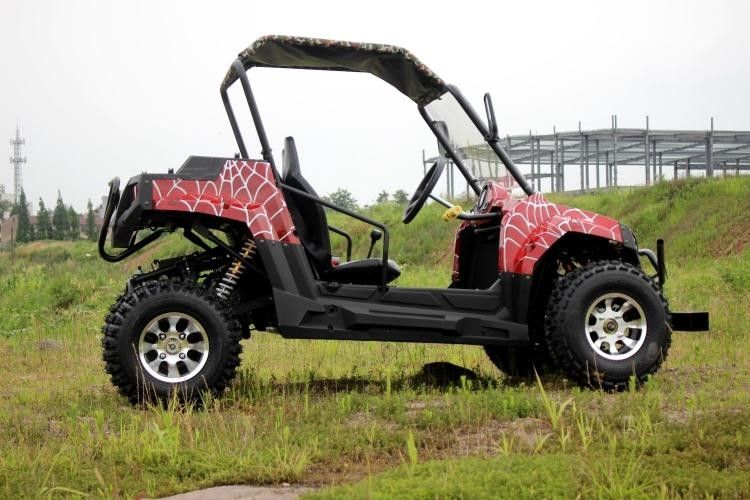

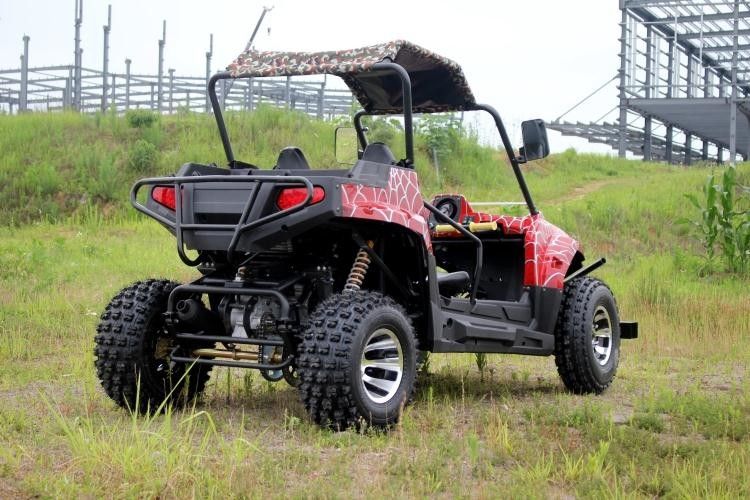

Kids Utv 150cc/200cc side by side for cheap sale with CE
Model:
sports utility vehicle200-6
Product Description:
| Engine type | |
| Displacement | 150cc or 200cc single cylinder |
| Starting System | Electric start |
| Bore & Stroke | 67*65mm |
| Stroke | 4 stroke and ingnition:CDI |
| Cooling | water-cooled |
| Max.power Output | 12kw/(6500r/min) |
| Max Torque | 17.5N.m/(5500r/min) |
| Transmission | |
| Gear shift | 1front+neutal+1reverse |
| Drive | Double chain drive with rear axle differential mechanism,built-in reverse gear. |
| Tires & wheels | |
| Front tire | 21x7-10 (10inch alloy rim) or 10 inch iron rim |
| Rear tire | 20x11.00-10 (10inch alloy rim) or 10 inch iron rim |
| Brakes & Suspension | |
| Front/rear Brakes | all hydraulic disc brakes |
| front suspension | Independent double-wishbone and double oil shock |
| rear suspension | Swing arm with double oil shock |
| Fuel capacity | 8L,metal,tank |
| Dimensions | |
| Product size | 2350*1220*1500 mm |
| Sheft to Ground | 850mm |
| Max.Load | 240kg |
| G.W./N.W. | 245/225kg |
| Rear Gauge | 900mm |
| Front Gauge | 1020mm |
| Seat to pedal | 950mm |
| Steering wheel to board | 500mm |
| Diameter | 35mm |
| Sheft size | 980*700mm (length*width) |
| Max.angle | 50 degree |
| Ground clearance | 150mm |
| Front shock length | 440mm |
| Rear shock length | 460mm |
| Seat size | 320*420*600mm |
| Packing | |
| Carton size | 1830*920*1320mm |
| Container |
Qty / 20" (pcs) 8 Qty / 40" (pcs) 18 Qty / 40"HQ (pcs) 26 |
Applications:
For adult use only, Forest road, Riverbed, Stream,
Mountain Road, On the Beach, Farm and Pleasure Ground
Shipping and Payment terms:
1. Shipping: by express, by air or by sea according to your order quantity.
2. Payment Terms: 30% T/T,western union or moneygram as deposit while placing order and the balance payment would be settled before order shipment
3. 100% prepaid is requested on order payment amount less than USD2,000
About us:
Our growing circle of wholesale dealers includes customers from Europe, U.S.A, Africa, Canada and South America. Our main goal is to manufacture top quality products with emphasis on safety and packing security out of concern to the front end customers who buy from our dealers. Our staffs are in the factories 24 hours a day constantly checking and improving the quality. Loyalty is highly important to us especially when it concerns to safety. (Our dealers customers will return to you and your business will make great profit. )
FAQ:
1. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container.
2. Q: How does your factory do regarding quality control?
A: Quality is priority. our staff always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
3. Q:What's your warranty terms?
A: for engine and frame is one year,and other parts are 3 months.
4. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Our company is the member of ecer.com . If you check with ecer, you will see that we have never got any complaint from our customers.
